Same model may have multiple batches, images only for reference.

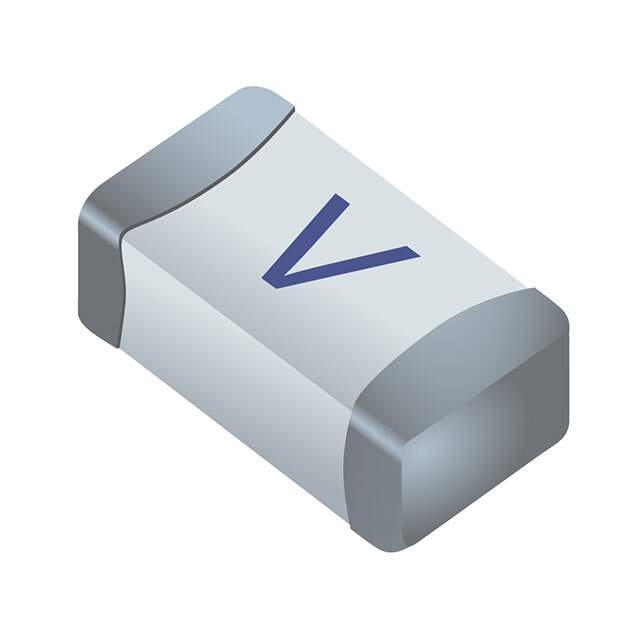

SF-1206HV30M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206HV30M-2

Part No SF-1206HV30M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-1206HV30M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206HVxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 30 A
Voltage Rating - DC 35 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 200A
Melting I2t 180
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.126" L x 0.063" W x 0.051" H (3.20mm x 1.60mm x 1.30mm)
DC Cold Resistance 0.0012 Ohms
Base Product Number SF-1206
Other Names SF-1206HV30M-2DKR,SF-1206HV30M-2TR,SF-1206HV30M-2CT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302070-SF-1206HV30M-2
Ultra Librarian 3D Model Ultra Librarian SF-1206HV30M-2 CAD Model

Description

The SinglFuse™ SF-1206HVxxM is a circuit protection>fuses electronic component that is designed to have a slow blow response time.

  • Manufacturer: Bourns Inc.
  • Win Source Part Number: 1302070-SF-1206HV30M-2
  • Breaking Capacity: 200A @ Rated Voltage
  • Melting I2t: 180
  • Standard Package: 3,000 Fuses
  • Application: Various Commercial Applications
