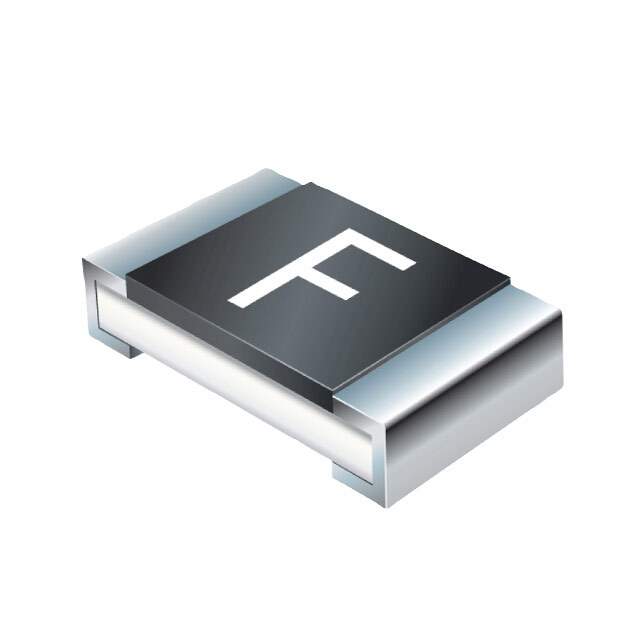

SF-1206FP500-2 Real Image
Same model may have multiple batches, images only for reference.

SF-1206FP500-2

Part No SF-1206FP500-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-1206FP500-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206FP
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 5 A
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 1.71
Approval Agency UL
Temperature Range - Operating -20°C ~ 105°C
Dimension 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm)
Base Product Number SF-1206
Other Names SF-1206FP500-2TR,SF-1206FP500-2DKR,SF-1206FP500-2CT
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302086-SF-1206FP500-2
Ultra Librarian 3D Model Ultra Librarian SF-1206FP500-2 CAD Model

Description

The SinglFuse™ SF-1206FP series circuit protection fuse is an ideal choice for protecting your electronic devices from overcurrent conditions.

  • Response Time: Fast blow
  • Breaking Capacity: 50A @ 32V DC
  • Current Rating: 5A
  • Melting I2t: 1.71
  • Package: 1206 (3216 Metric)
  • Operating Temperature: -20°C to 105°C
  • Package: Tape and reel
  • Mounting: SMD (SMT) technology
  • ECCN: EAR99 compliant
  • Standard Package: 5,000 units
