Same model may have multiple batches, images only for reference.

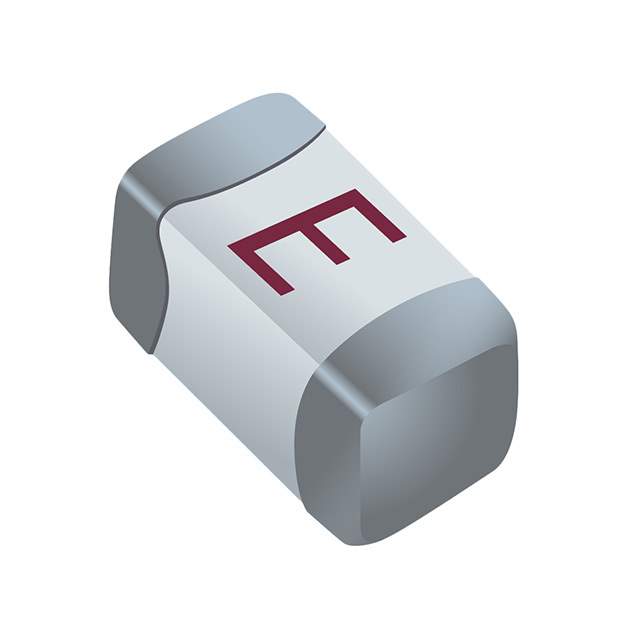

SF-0603SP250M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0603SP250M-2

Part No SF-0603SP250M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0603SP250M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0603SPxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2.5 A
Voltage Rating - DC 32 V
Response Time Slow Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.63
Temperature Range - Operating -55°C ~ 150°C
Dimension 0.063" L x 0.031" W x 0.031" H (1.60mm x 0.80mm x 0.80mm)
DC Cold Resistance 0.041 Ohms
Base Product Number SF-0603
Other Names SF-0603SP250M-2TR,SF-0603SP250M-2CT,SF-0603SP250M-2DKR
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302111-SF-0603SP250M-2
Ultra Librarian 3D Model Ultra Librarian SF-0603SP250M-2 CAD Model

Description

The Bourns Inc. SinglFuse™ SF-0603SPxxxM series fuse is a board mountable, slow blow type fuse with a voltage rating of 32V and a breaking capacity of 50A.

  • Voltage Rating: 32V
  • Breaking Capacity: 50A
  • DC Cold Resistance: 0.041 ohms
  • Melting I2t: 0.63
  • Mounting: surface mount device (SMD) tape and reel package
  • Package/Case Size: 0603 (1608 Metric)
  • Temperature Range: -55°C to 150°C
  • Family Name: SinglFuse™ SF-0603SPxxxM
  • Categorized Under: circuit protection and fuses
  • ECCN: EAR99
  • REACH: unaffected
  • HTSUS Code: 8536.10.0040
