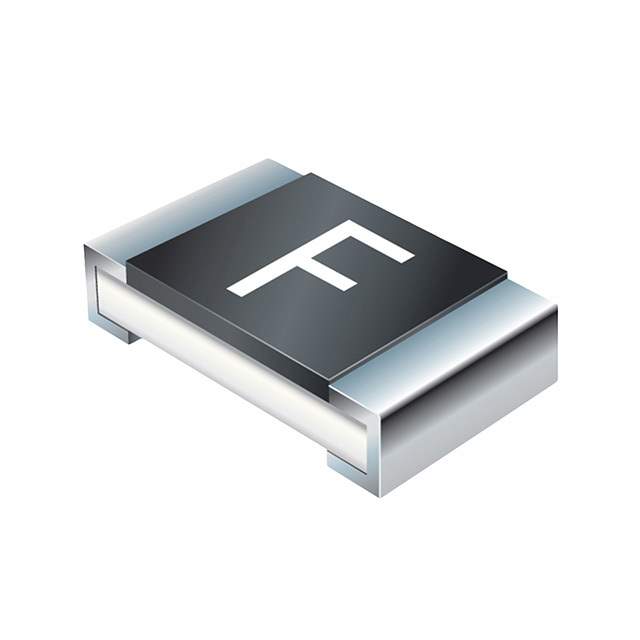

SF-0603FP300-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0603FP300-2

Part No SF-0603FP300-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0603FP300-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0603FP
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 3 A
Voltage Rating - DC 24 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.082
Approval Agency UL
Temperature Range - Operating -40°C ~ 105°C
Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Base Product Number SF-0603
Other Names SF-0603FP300-2TR,SF-0603FP300-2CT,SF-0603FP300-2DKR,SF-0603FP300-2
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302163-SF-0603FP300-2
Ultra Librarian 3D Model Ultra Librarian SF-0603FP300-2 CAD Model

Description

The SinglFuse™ SF-0603FP300-2 is a fast-blow board mount fuse that provides reliable protection for electronic circuits manufactured by Bourns Inc.

  • Voltage Rating: 24 V
  • Breaking Capacity @ Rated Voltage: 50A
  • Melting I2t: 0.082
  • Package: Tape and reel
  • Standard Package: 5,000 units
  • Mounting: SMD (SMT)
  • Package/Case: 0603 (1608 metric)
  • Temperature Range: -40°C to 105°C
