Same model may have multiple batches, images only for reference.

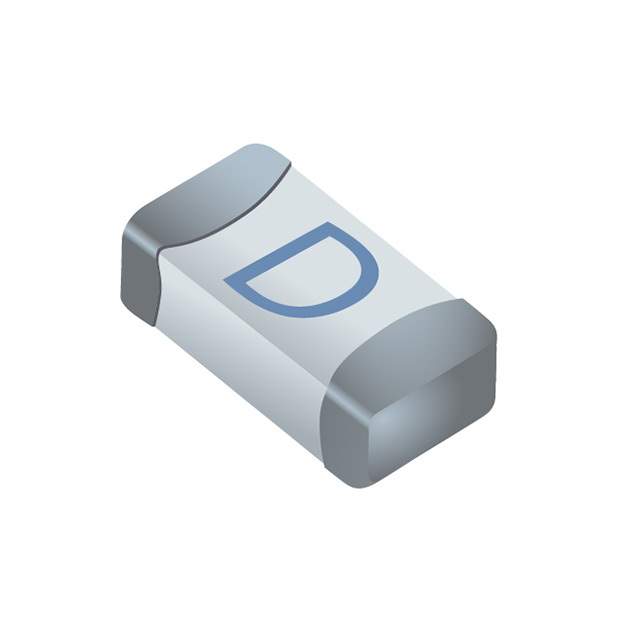

SF-0603FP200M-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0603FP200M-2

Part No SF-0603FP200M-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0603FP200M-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0603FPxxxM
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2 A
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.21
Approval Agency UL
Temperature Range - Operating -55°C ~ 150°C
Dimension 0.063" L x 0.031" W x 0.019" H (1.60mm x 0.80mm x 0.48mm)
DC Cold Resistance 0.073 Ohms
Base Product Number SF-0603
Other Names SF-0603FP200M-2DKR,SF-0603FP200M-2CT,SF-0603FP200M-2TR
Standard Package 6,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302147-SF-0603FP200M-2
Ultra Librarian 3D Model Ultra Librarian SF-0603FP200M-2 CAD Model

Description

The Bourns SinglFuse™ SF-0603FPxxxM is a series of circuit protection fuses designed for board mount applications manufactured by Bourns Inc.

  • Fuse: SF-0603FP200M-2 is a fast-blow fuse
  • Voltage Rating: 32V
  • Current Rating: 2A
  • Breaking Capacity @ Rated Voltage: 35A
  • DC Cold Resistance: 0.073 Ohms
  • Mounting: SMD (SMT)
  • Packaging: Tape & reel
  • Standard Package: 6,000 units per package
  • Dimension: 0.063" L x 0.031" W x 0.019" H (1.60mm x 0.80mm x 0.48mm)
  • Temperature Range: -55°C to 150°C
  • Approval: UL
  • Regulation: REACH unaffected
