Same model may have multiple batches, images only for reference.

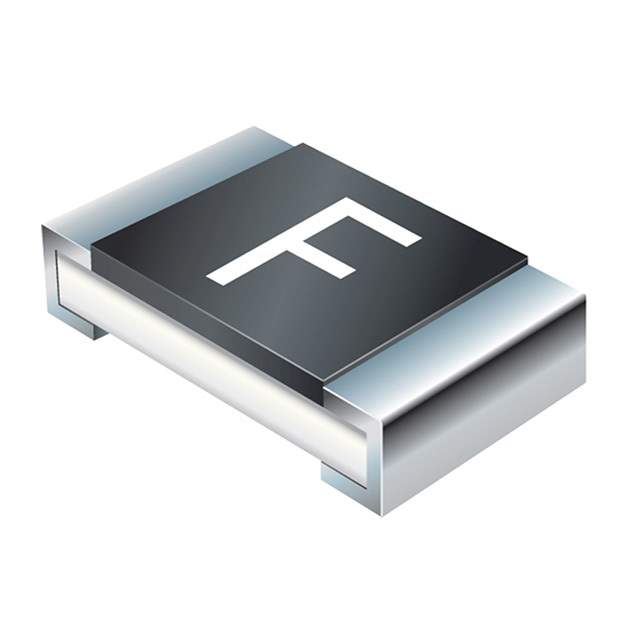

SF-0402FP080-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0402FP080-2

Part No SF-0402FP080-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0402FP080-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0402FP
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 800 mA
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0402 (1005 Metric)
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.00532
Approval Agency UL
Temperature Range - Operating -20°C ~ 150°C
Dimension 0.039" L x 0.020" W x 0.014" H (1.00mm x 0.52mm x 0.35mm)
Base Product Number SF-0402
Other Names 118-SF-0402FP080-2CT,SF-0402FP080-2DKR,SF-0402FP080-2DKR,118-SF-0402FP080-2DKR,SF-0402FP080-2TR,SF-0402FP080-2CT,SF-0402FP080-2CT,118-SF-0402FP080-2TR,SF-0402FP080-2TR
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302194-SF-0402FP080-2
Ultra Librarian 3D Model Ultra Librarian SF-0402FP080-2 CAD Model

Description

The Bourns Inc. 1302194-SF-0402FP080-2 is a fast-blow board mount fuse with a voltage rating of 32V and a current rating of 800mA.

  • Voltage Rating: 32V
  • Current Rating: 800mA
  • Series: SinglFuse™ SF-0402FP series
  • Package: Tape & Reel
  • Mounting: Surface Mountable
  • Package/Case: 0402 (1005 Metric)
  • Category: Circuit Protection
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
  • HTSUS: 8536.10.0040
