Same model may have multiple batches, images only for reference.

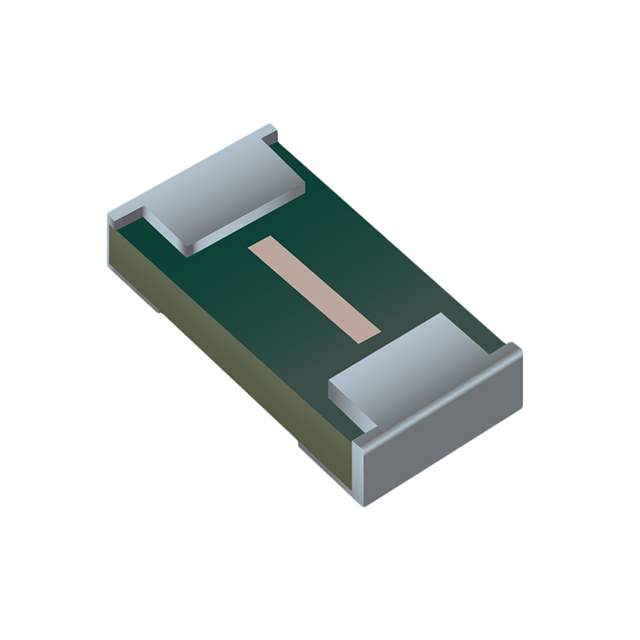

SF-0402FP075F-2 Real Image
Same model may have multiple batches, images only for reference.

SF-0402FP075F-2

Part No SF-0402FP075F-2
Manufacturer Bourns Inc.
Catalog Fuses
Datasheet
SF-0402FP075F-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-0402FPxxxF
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 750 mA
Voltage Rating - DC 35 V
Response Time Fast Blow
Package / Case 0402 (1005 Metric)
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.012
Approval Agency UL
Temperature Range - Operating -55°C ~ 90°C
Dimension 0.039" L x 0.020" W x 0.013" H (1.00mm x 0.51mm x 0.33mm)
DC Cold Resistance 0.1 Ohms
Base Product Number SF-0402
Other Names SF-0402FP075F-2CT,SF-0402FP075F-2DKR,SF-0402FP075F-2TR
Standard Package 20,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302184-SF-0402FP075F-2
Ultra Librarian 3D Model Ultra Librarian SF-0402FP075F-2 CAD Model

Description

The Bourns Inc. SinglFuse SF-0402FP075F-2 is a fast-blow fuse that comes in an 0402 (1005 Metric) package.

  • Voltage Rating: 35 V
  • Current Rating: 750 mA
  • Fuse Type: Board Mount Fuse
  • Temperature Range: -55°C to 90°C
  • Market Status: Widely used in the electronics industry due to its balance of supply and demand status and high popularity
