Same model may have multiple batches, images only for reference.

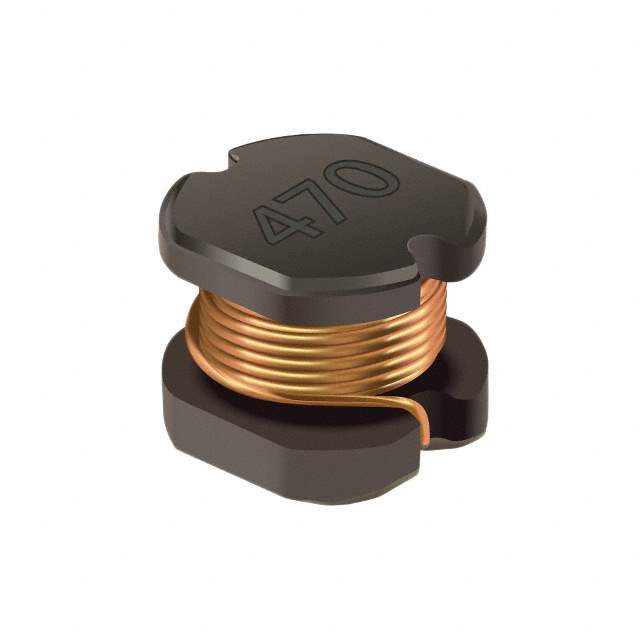

SDE0604A-4R7M Real Image
Same model may have multiple batches, images only for reference.

SDE0604A-4R7M

Part No SDE0604A-4R7M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDE0604A-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDE0604A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 3.4 A
Current - Saturation (Isat) 3A
Shielding Unshielded
DC Resistance (DCR) 70mOhm Max
Frequency - Self Resonant 47MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SDE0604A
Other Names SDE0604A-4R7MTR,SDE0604A-4R7MCT,SDE0604A-4R7MDKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274918-SDE0604A-4R7M
Ultra Librarian 3D Model Ultra Librarian SDE0604A-4R7M CAD Model

Description

The Bourns Inc. 1274918-SDE0604A-4R7M is a surface mount fixed inductor that comes in a tape & reel packaging.

  • Type: Surface Mount Fixed Inductor
  • Packaging: Tape & Reel
  • Core Type: Drum Core, Wirewound
  • Inductance: 4.7 µH
  • Height: 0.189" (4.80mm) Max
  • Shielding: Unshielded
  • Ratings: AEC-Q200
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.228" L x 0.205" W (5.80mm x 5.20mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 70mOhm Max
  • Current Rating: 3.4 A
  • Application: Automotive
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8504.50.4000
  • Base Product Number: SDE0604A
