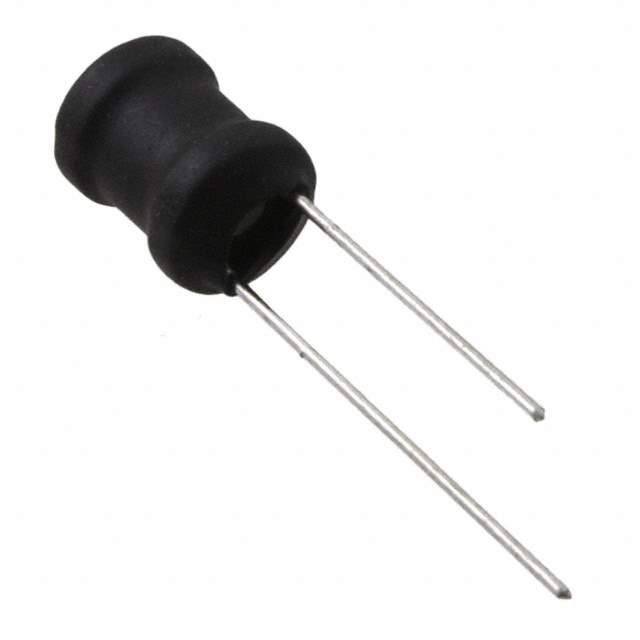

RLB9012-223KL Real Image
Same model may have multiple batches, images only for reference.

RLB9012-223KL

Part No RLB9012-223KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22MH 110MA 59.3 OHM TH / 22 mH Unshielded Drum Core, Wirewound Inductor 110 mA 59.3Ohm Max Radial, Vertical Cylinder
Datasheet
RLB9012-223KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Tray
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 mH
Tolerance ±10%
Current Rating (Amps) 110 mA
Shielding Unshielded
DC Resistance (DCR) 59.3Ohm Max
Q @ Freq 15 @ 79kHz
Frequency - Self Resonant 210kHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Through Hole
Case / Package Radial, Vertical Cylinder
Size / Dimension 0.354" Dia (9.00mm)
Height - Seated (Max) 0.480" (12.20mm)
Base Product Number RLB9012
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number RLB9012223KL
Standard Package 200
Win Source Part Number 1327928-RLB9012-223KL
Ultra Librarian 3D Model Ultra Librarian RLB9012-223KL CAD Model

Description

The Bourns Inc. RLB9012-223KL inductor is an unshielded drum core, wirewound type with a ferrite core material.

  • Size: 0.354" Dia (9.00mm)
  • Inductance: 22 mH
  • Height: 0.480" (12.20mm) Max
  • Tolerance: ±10%
  • DC Resistance (DCR): 59.3Ohm Max
  • Current Rating: 110 mA
  • Q @ Freq: 15 @ 79kHz
  • Frequency Self-Resonant: 210kHz
  • Temperature Range: -55°C ~ 125°C
  • Mounting Type: Through Hole
  • Standard Package: 200
