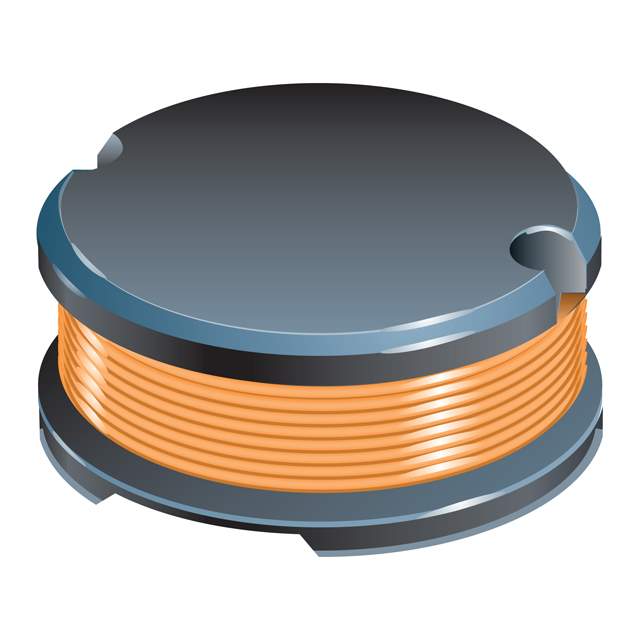

SDR1307A-471K

Part No SDR1307A-471K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1307A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 µH
Tolerance ±10%
Current Rating (Amps) 900 mA
Current - Saturation (Isat) 1.4A
Shielding Unshielded
DC Resistance (DCR) 720mOhm Max
Q @ Freq 12 @ 796kHz
Frequency - Self Resonant 2.2MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" Dia (13.00mm)
Height - Seated (Max) 0.287" (7.30mm)
Base Product Number SDR1307A
Other Names SDR1307A-471KDKR,SDR1307A-471KTR,SDR1307A-471KDKR,SDR1307A-471K,SDR1307A-471KCT,118-SDR1307A-471KDKR,SDR1307A-471KTR,SDR1307A-471KCT,118-SDR1307A-471KCT,118-SDR1307A-471KTR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274565-SDR1307A-471K
Ultra Librarian 3D Model Ultra Librarian SDR1307A-471K CAD Model

Description

The SDR1307A series from Bourns Inc. is a drum core, wirewound inductor that comes in a tape and reel package.

  • Shielding: Unshielded
  • Tolerance: ±10%
  • Inductance: 470 µH
  • Q @ Freq: 12 @ 796kHz
  • DC resistance (DCR): 720mOhm Max
  • Current Rating (Amps): 900 mA
  • Frequency - Self-Resonant: 2.2MHz
  • Temperature Range: -40°C to 125°C
  • Rating: AEC-Q200
  • Core Material: Ferrite
  • Dimensions: 0.512” Dia (13.00mm)
  • Package/Case: Nonstandard
  • Other Names: SDR1307A-471KDKR, SDR1307A-471KTR, SDR1307A-471KDKR, SDR1307A-471K, SDR1307A-471KCT, 118-SDR1307A-471KDKR, SDR1307A-471KTR, SDR1307A-471KCT, 118-SDR1307A-471KCT, and 118-SDR1307A-471KTR
