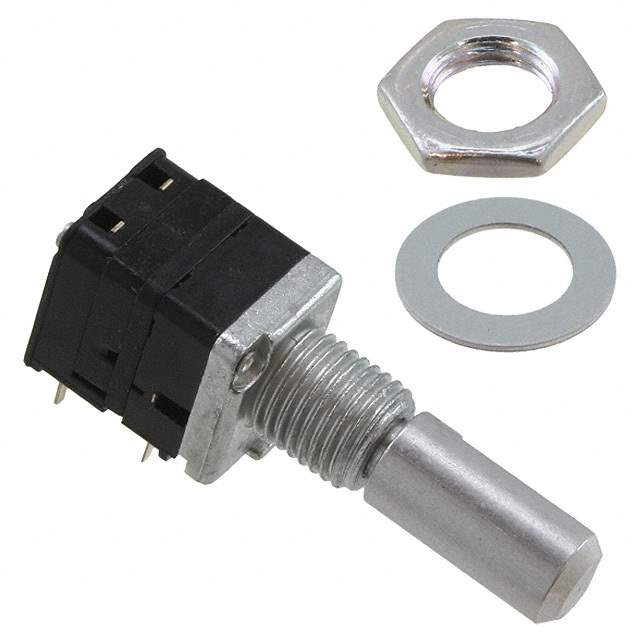

PEC09-2320F-T0015

Part No PEC09-2320F-T0015
Manufacturer Bourns Inc.
Catalog Encoders
Description ROTARY ENCODER MECHANICAL 15PPR / Rotary Encoder Mechanical 15 Quadrature (Incremental) Right Angle
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr Bourns Inc.
Series PEC09
Package Tray
Encoder Type Mechanical
Output Type Quadrature (Incremental)
Pulses per Revolution 15
Actuator Type 6mm Dia Flatted End
Detent Yes
Built in Switch Yes
Mounting Type Panel, PCB Through Hole
Orientation Right Angle
Termination Style PC Pin
Rotational Life (Cycles Min) 30K
Base Product Number PEC09
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
California Prop 65 Warning Information
Win Source Part Number 1337191-PEC09-2320F-T0015
Ultra Librarian 3D Model Ultra Librarian PEC09-2320F-T0015 CAD Model

Description

The Bourns Inc. 1337191-PEC09-2320F-T0015 is an incremental encoder with a right-angle orientation.

  • Encoder Type: Incremental
  • Output Type: Quadrature
  • Actuator Type: 6mm Dia Flatted End
  • Orientation: Right Angle
  • Mechanical Type: Detent
  • Pulses per Revolution: 15
  • Detent: Yes
  • Rotational Life (Cycles Min): 30K
