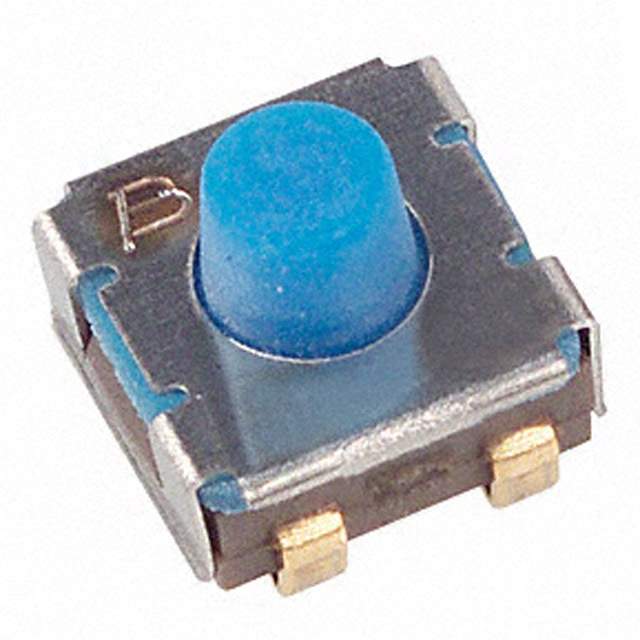

7914J-1-024E Real Image
Same model may have multiple batches, images only for reference.

7914J-1-024E

Part No 7914J-1-024E
Manufacturer Bourns Inc.
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.1A 16V
Datasheet
7914J-1-024E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.1A @ 16VAC/DC
Actuator Type Flush
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 2.62mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 5.00mm x 5.00mm
Illumination Non-Illuminated
Operating Force 300gf
Actuator Material Silicon Rubber
Mechanical Life 100,000 Cycles
Temperature Range - Operating -55°C to 125°C
Win Source Part Number 076568-7914J-1-024E
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 7914J-1-024E CAD Model

Description

Product Overview

The 7914J-1-024E offers distinct advantages with its advanced components, making it suitable for high-demand applications requiring precise operations.

Applications

  • Precision instrumentation
  • Medical equipment
  • Automotive electronics

Features and Benefits

  • Accurate performance in various temperature ranges
  • High reliability reduces maintenance costs
  • Compact size supports space-saving designs
