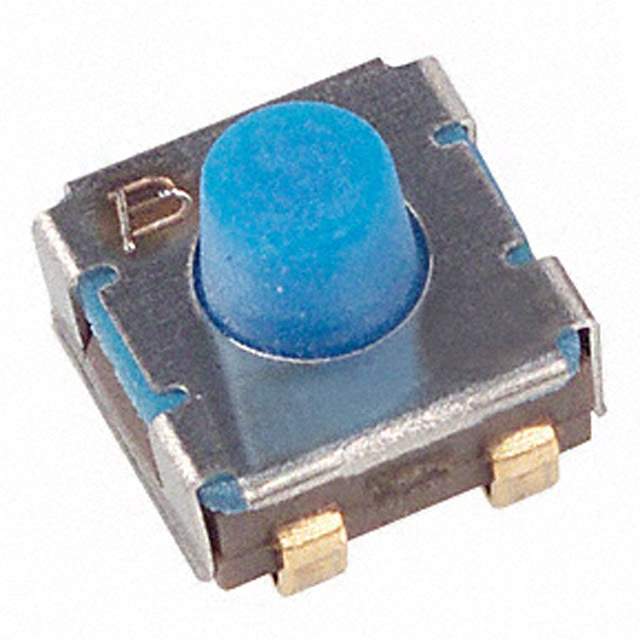

7914J-1-000E Real Image
Same model may have multiple batches, images only for reference.

7914J-1-000E

Part No 7914J-1-000E
Manufacturer Bourns Inc.
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.1A 16V
Datasheet
7914J-1-000E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.1A @ 16VAC/DC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 4.19mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 5.00mm x 5.00mm
Illumination Non-Illuminated
Operating Force 300gf
Actuator Material Silicon Rubber
Mechanical Life 100,000 Cycles
Temperature Range - Operating -55°C to 125°C
Win Source Part Number 007590-7914J-1-000E
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 7914J-1-000E CAD Model

Description

Product Overview

The 7914J-1-000E comes with enhanced electrical capabilities, offering superior utility in complex electronic circuits. Its efficiency makes it a go-to choice for professionals.

Applications

  • Power supply units
  • Communication devices
  • Electronic test equipment

Features and Benefits

  • High efficiency reduces energy waste
  • Easy installation process
  • High thermal resistance for better performance
