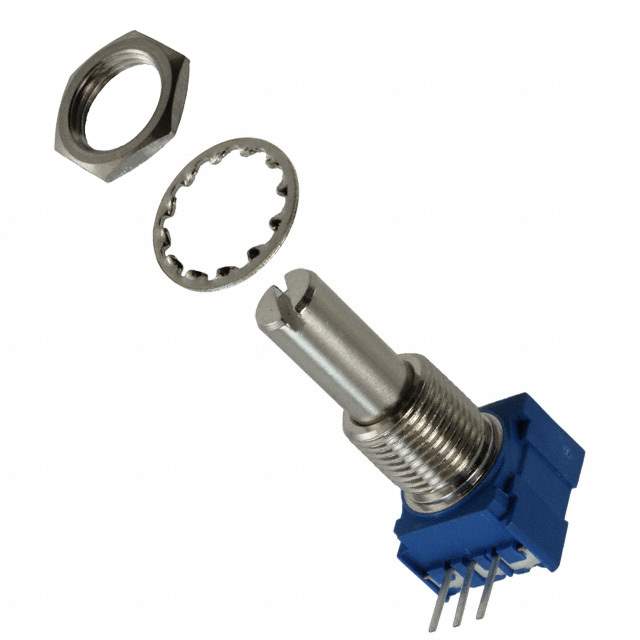

51AAD-B28-A15L Real Image
Same model may have multiple batches, images only for reference.

51AAD-B28-A15L

Part No 51AAD-B28-A15L
Manufacturer Bourns Inc.
Catalog Rotary Potentiometers, Rheostats
Description 51/53 - Sealed 1/2 ” (12.5 mm) Square Control | POT 10K OHM 1W CERMET LINEAR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Bulk
Resistance (Ohms) 10k
Tolerance ±10%
Power (W) 1W
Built in Switch None
Number of Turns 1
Taper Linear
Number of Gangs 1
Adjustment Type Side Adjustment
Temperature Coefficient ±150ppm/°C
Rotation 290°
Resistive Material Cermet
Termination Style PC Pins
Actuator Type Slotted
Actuator Length 0.875" (22.23mm)
Actuator Diameter 0.250" (6.35mm)
Bushing Thread 3/8-32
Mounting Style Panel Mount
Size - Body Rectangular - 0.521" x 0.492" Face x 0.521" H (13.25mm x 12.50mm x 13.25mm)
Family Part Number 51AAD
Manufacturer Pack Quantity 45
MSL Level 1 (Unlimited)
Win Source Part Number 1129066-51AAD-B28-A15L
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 51AAD-B28-A15L CAD Model

Description

The Bourns Inc. 51AAD-B28-A15L is a linear taper potentiometer with a resistance of 10k ohms and a power rating of 1W.

  • Manufacturer: Bourns Inc.
  • Taper: Linear
  • Resistance: 10k ohms
  • Power Rating: 1W
  • Tolerance: ±10 percent
  • Temperature Coefficient: ±150ppm/°C
  • Turns: 1
  • Rotation: 290°
  • Package: Rectangular with a size of 0.521" x 0.492" face x 0.521" H
  • Supply and Demand Status: Limited
