Same model may have multiple batches, images only for reference.

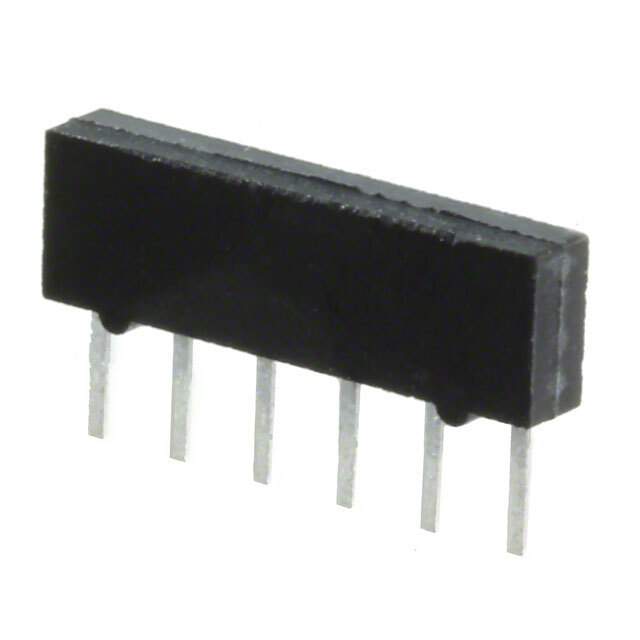

4306R-102-223LF Real Image
Same model may have multiple batches, images only for reference.

4306R-102-223LF

Part No 4306R-102-223LF
Manufacturer Bourns Inc.
Catalog Resistor Networks, Arrays
Description RES ARRAY 3 RES 22K OHM 6SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Bourns Inc.
Packaging Bulk
Circuit Type Isolated
Resistance (Ohms) 22k
Tolerance ±2%
Number of Resistors 3
Resistor-Ratio-Drift 50ppm/°C
Number of Pins 6
Power Per Element 300mW
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Style Through Hole
Manufacturer Package 6-SIP
Supplier Device Package 6-SIP
Parts Dimension 0.584" L x 0.085" W (14.83mm x 2.16mm)
Height - Seated (Maximum) 0.195" (4.95mm)
Family Part Number 4306R
Manufacturer Pack Quantity 35
MSL Level 1 (Unlimited)
Win Source Part Number 736474-4306R-102-223LF
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 4306R-102-223LF CAD Model

Description

The Bourns Inc. 4306R-102-223LF is a resistor that is packaged in bulk and has a through-hole mounting style.

  • Tolerance: ±2%
  • Temperature coefficient: ±100ppm/°C
  • Resistance: 22k
  • Circuit type: isolated
  • Number of resistors: 3
  • Number of pins: 6
  • Power per element: 300mW
  • Supplier device package: 6-SIP
  • Temperature range: -55°C to 125°C
  • Height: 0.195" (4.95mm) when seated
  • Supply and demand status: balanced
