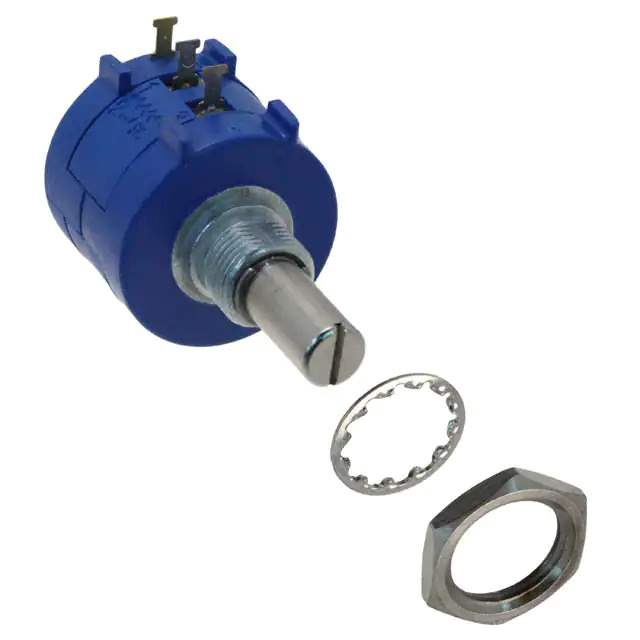

3590S-2-503 Real Image
Same model may have multiple batches, images only for reference.

3590S-2-503

Part No 3590S-2-503
Manufacturer Bourns Inc.
Catalog Rotary Potentiometers, Rheostats
Description POT 50K OHM 2W WIREWOUND LINEAR
Datasheet
3590S-2-503 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Rotary Potentiometers, Rheostats
Mfr Bourns Inc.
Series 3590
Package Bulk
Product Status Obsolete
Resistance (Ohms) 50k
Tolerance ±5%
Power (Watts) 2W
Built in Switch None
Number of Turns 10
Taper Linear
Number of Gangs 1
Adjustment Type User Defined
Temperature Coefficient ±50ppm/°C
Rotation 3600°
Resistive Material Wirewound
Termination Style Solder Lug
Actuator Type Slotted
Actuator Length 0.812" (20.63mm)
Actuator Diameter 0.2497" (6.34mm)
Bushing Thread 3/8-32
Mounting Type Panel Mount
Size - Body Round - 0.875" Dia (22.23mm)
Base Product Number 3590S
Standard Package 5 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.31.0000
Win Source Part Number 906670-3590S-2-503
Ultra Librarian 3D Model Ultra Librarian 3590S-2-503 CAD Model

Description

The Bourns Inc. 3590S-2-503 is a rotary potentiometer with a resistance of 50k Ohms.

  • Resistance: 50k Ohms
  • Taper: Linear
  • Adjustment Type: User-Defined
  • Power Rating: 2W
  • Tolerance: ±5%
  • Actuator: Slotted
  • Actuator Length: 0.812" (20.63mm)
  • Actuator Diameter: 0.2497" (6.34mm)
  • Body Shape: Round
  • Body Diameter: 0.875" (22.23mm)
  • Bushing Thread Size: 3/8-32
  • Mounting Type: Panel Mount
  • Packaging: Bulk
  • Standard Package: 5 pcs
  • Series: 3590 series
