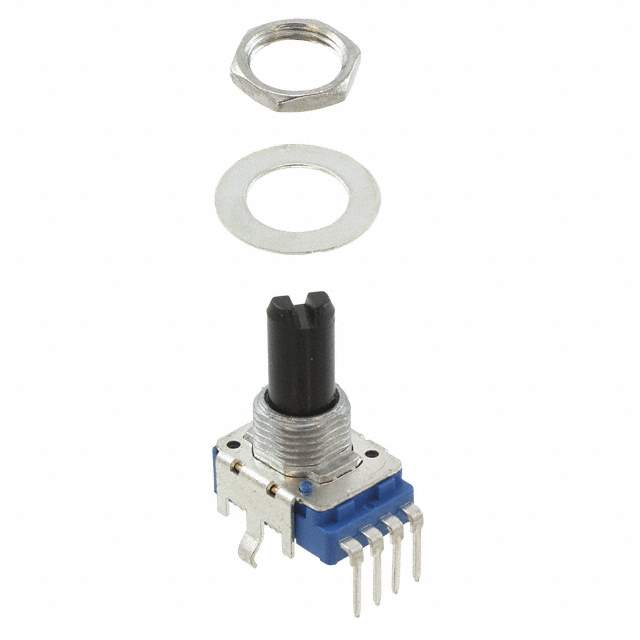

PTV111-3415A-B103 Real Image
Same model may have multiple batches, images only for reference.

PTV111-3415A-B103

Part No PTV111-3415A-B103
Manufacturer Bourns Inc.
Catalog Rotary Potentiometers, Rheostats
Description POT 10K OHM 1/20W CARBON LINEAR / Res Carbon Film POT 10K Ohm 20% 0.05W(1/20W) 1(Elec)/1(Mech)Turns 6mm (12 X 14.4 X 26mm) Pin Panel Mount/Bracket Mount
Datasheet
PTV111-3415A-B103 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series PTV
Packaging Tray
Taper Linear
Resistance (Ohms) 10k
Tolerance ±20%
Number of Gangs 1
Built in Switch None
Power (Watts) 0.05W, 1/20W
Number of Turns 1
Rotation 300°
Adjustment Type Top Adjustment
Resistive Material Carbon
Termination Style PC Pins, Board Locks
Actuator Type Flatted
Actuator Length 0.591" (15.00mm)
Actuator Diameter 0.236" (6.00mm)
Bushing Thread M9 x 0.75
Mounting Panel Mount
Win Source Part Number 792726-PTV111-3415A-B103
Popularity Medium
Supply and Demand Status Limited
Family Name PTV
Introduction Date April 15, 2003
ECCN EAR99
Country of Origin Costa Rica, Taiwan
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian PTV111-3415A-B103 CAD Model

Description

The Bourns Inc. PTV111-3415A-B103 is a linear taper potentiometer with a resistance of 10k ohms, 1/20W power rating, and ±20% tolerance.

  • Resistance: 10k ohms
  • Power Rating: 1/20W
  • Tolerance: ±20%
  • Actuator Length: 0.591 inches
  • Actuator Diameter: 0.236 inches
  • Bushing Thread: M9 x 0.75
  • Mounting: Panel
  • Gang: Single
  • Adjustment: Top
  • Switch: No
  • Rotation Angle: 300 degrees
  • Series: PTV
  • EOL Date: 2028
  • Supply and Demand Status: Limited
