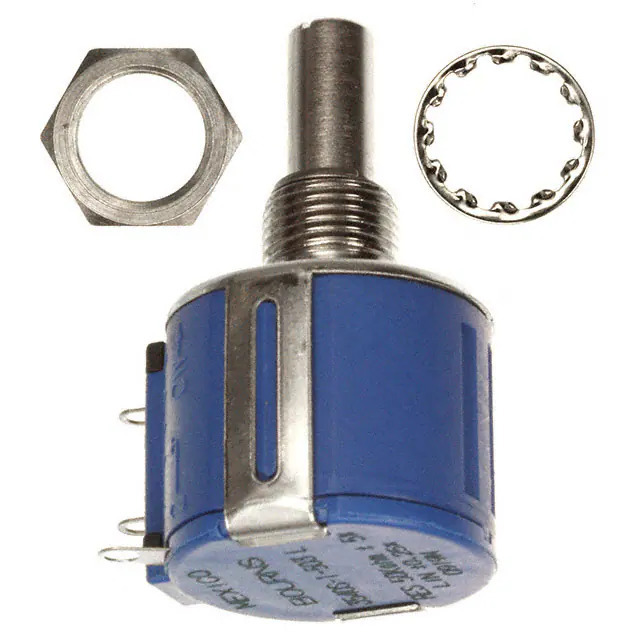

3540S-1-104L Bourns Inc.
Same model may have multiple batches, images only for reference.

3540S-1-104L

Part No 3540S-1-104L
Manufacturer Bourns Inc.
Catalog Rotary Potentiometers, Rheostats
Description POT 100K OHM 2W WIREWOUND LINEAR
Datasheet
3540S-1-104L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Rotary Potentiometers, Rheostats
Mfr Bourns Inc.
Series 3540
Package Tray
Product Status Active
Resistance (Ohms) 100k
Tolerance ±5%
Power (Watts) 2W
Built in Switch None
Number of Turns 10
Features -
Taper Linear
Number of Gangs 1
Adjustment Type User Defined
Temperature Coefficient ±50ppm/°C
Rotation 3600°
Resistive Material Wirewound
Termination Style Solder Lug
Actuator Type Slotted
Actuator Length 0.812" (20.63mm)
Actuator Diameter 0.2497" (6.34mm)
Bushing Thread 3/8-32
Mounting Type Panel Mount
Size - Body Round - 0.875" Dia (22.23mm)
Base Product Number 3540S
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.31.0000
Win Source Part Number 1375023-3540S-1-104L
Ultra Librarian 3D Model Ultra Librarian 3540S-1-104L CAD Model

Description

The 3540 series rotary potentiometer is a panel mount variable resistor manufactured by Bourns Inc.

  • Resistance: 100k Ohms
  • Power Rating: 2W
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Actuator Type: Slotted
  • Termination Style: Solder Lug
  • Mounting Type: Panel Mount
  • Body Shape: Round
  • Body Diameter: 0.875" (22.23mm)
  • REACH: Affected
  • ECCN: EAR99
