Same model may have multiple batches, images only for reference.

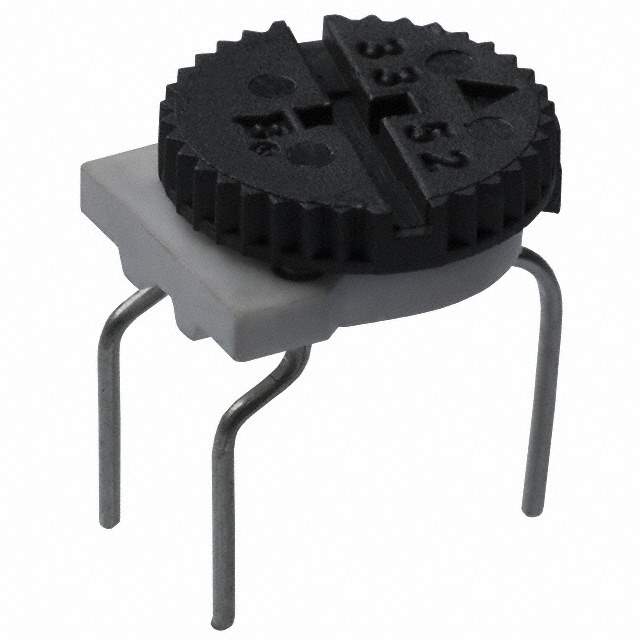

3352E-1-504LF Real Image
Same model may have multiple batches, images only for reference.

3352E-1-504LF

Part No 3352E-1-504LF
Manufacturer Bourns Inc.
Catalog Potentiometers, Variable Resistors
Description THUMBWHEEL POT 500K OHM 0.5W TOP  /  500 kOhms 0.5W, 1/2W Through Hole Thumbwheel Potentiometer Top Adjustment
Datasheet
3352E-1-504LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Thumbwheel Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3352 - Open Frame
Package Bulk
Resistance 500 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±20%
Number of Turns 1
Adjustment Type Top Adjustment
Dimension Round - 0.350" Dia x 0.210" H (8.89mm x 5.33mm)
Termination PC Pins
Mounting Type Through Hole
Base Product Number 3352E
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Other Names 3352E-1-504LF-ND,3352E1504LF,3352E-504LF
Standard Package 100
Win Source Part Number 1224196-3352E-1-504LF
Ultra Librarian 3D Model Ultra Librarian 3352E-1-504LF CAD Model

Description

The Trimpot 3352 - Open Frame thumbwheel potentiometer by Bourns Inc. has a resistance of 500 kOhms and a power rating of 0.5W.

  • Resistance: 500 kOhms
  • Power Rating: 0.5W
  • Tolerance: ±20%
  • Number of Turns: 1
  • Mounting Type: Through Hole
  • Dimension: Round - 0.350" Dia x 0.210" H (8.89mm x 5.33mm)
  • Adjustment: Top Adjustable
  • Packaging: Bulk
