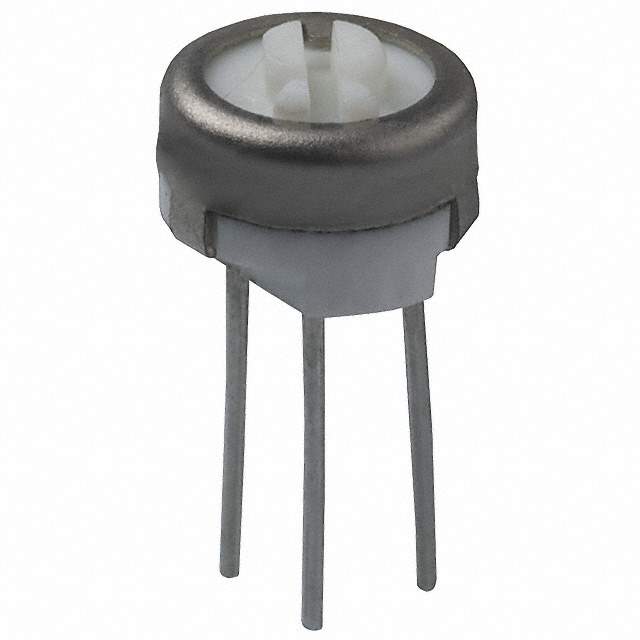

Same model may have multiple batches, images only for reference.

3329H-1-504LF

Name: 3329H-1-504LF
Brand: Bourns Inc.
SKU: 987858
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3329H-1-504LF
Manufacturer	Bourns Inc.
Catalog	Potentiometers, Variable Resistors
Description	TRIMMER 500K OHM 0.5W PC PIN TOP / 500 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Datasheet	3329H-1-504LF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr	Bourns Inc.
Series	Trimpot® 3329 - Sealed
Package	Tube
Resistance	500 kOhms
Power (Watts)	0.5W, 1/2W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	1
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting Type	Through Hole
Termination Style	PC Pins
Dimension	Round - 0.250" Dia (6.35mm)
Base Product Number	3329H
MSL Level	Not Applicable
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.40.8050
Other Names	3329H-1-504LF-ND,3329H1504LF,3329H-504LF
Standard Package	100
Win Source Part Number	987858-3329H-1-504LF
Ultra Librarian 3D Model	Ultra Librarian 3329H-1-504LF CAD Model

Alternative Products

Description

The 987858-3329H-1-504LF is a trimmer potentiometer from the Trimpot® 3329 - Sealed series manufactured by Bourns Inc.

Resistance: 500 kOhms
Tolerance: ±10%
Power Rating: 0.5W (1/2W)
Temperature Coefficient: ±100ppm/°C
Shape: round
Diameter: 0.250" (6.35mm)
Mounting Type: through-hole
Standard Package: 100
Termination: PC pins
REACH: affected by REACH
HTSUS: 8533.40.8050
