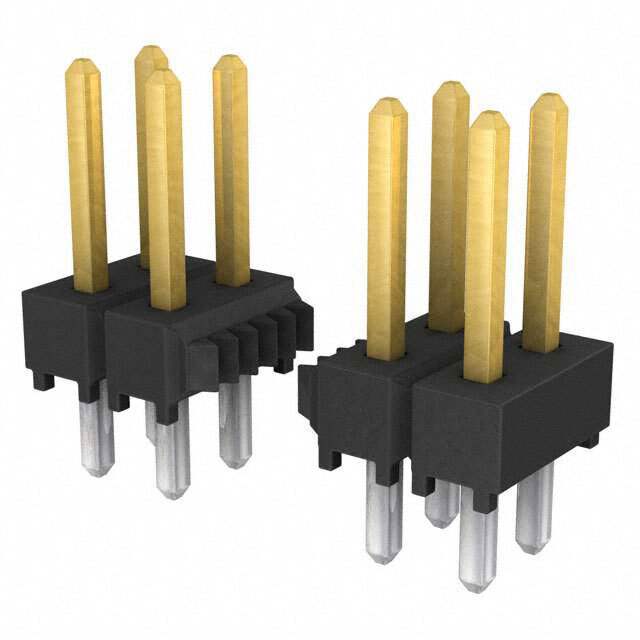

Same model may have multiple batches, images only for reference.
TSW-110-07-F-D Samtec Inc.
Same model may have multiple batches, images only for reference.

TSW-110-07-F-D

Part No TSW-110-07-F-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 2.54MM
Datasheet
TSW-110-07-F-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203836-TSW-110-07-F-D
Manufacturer Samtec Inc.
Category Connectors, Interconnects -Rectangular Connectors- Headers, Male Pins
Series TSW
Package Bag
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Ultra Librarian 3D Model Ultra Librarian TSW-110-07-F-D CAD Model
