Same model may have multiple batches, images only for reference.

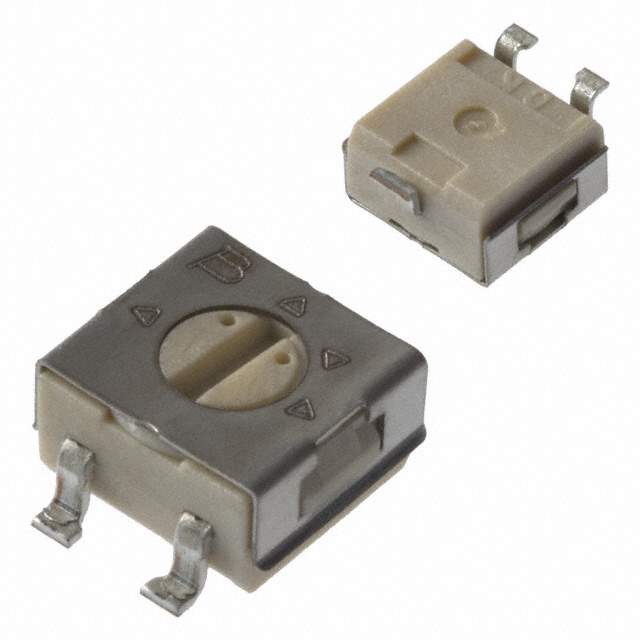

3314G-1-253E Real Image
Same model may have multiple batches, images only for reference.

3314G-1-253E

Part No 3314G-1-253E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 25K OHM 0.25W GW TOP ADJ
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Resistance 25 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Style SMD
Termination Style Gull Wing
Dimension Square - 0.177" x 0.177" Face x 0.100" H (4.50mm x 4.50mm x 2.55mm)
Part Number Series 3314G
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806662-3314G-1-253E
Ultra Librarian 3D Model Ultra Librarian 3314G-1-253E CAD Model

Description

The 3314G-1-253E is a top adjustable cermet potentiometer designed for use in a variety of applications. It features a resistance of 25 kOhms and a tolerance of ±20%, making it suitable for use in audio and power supply circuits.

  • Resistance: 25 kOhms
  • Tolerance: ±20%
  • Form Factor: 0.177" x 0.177" face x 0.100" H (4.50mm x 4.50mm x 2.55mm)
  • Termination: Gull Wing
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W (1/4W)
  • Manufacturer Pack Quantity: 500
  • MSL Level: 1 (unlimited)
