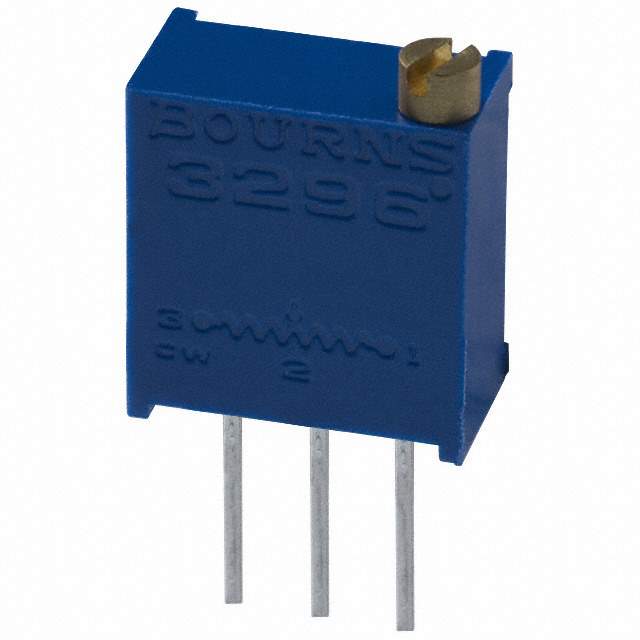

3296W-1-505LF

Part No 3296W-1-505LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 5M OHM 0.5W PC PIN
Datasheet
3296W-1-505LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3296 - Sealed
Packaging Tube
Resistance (Ohms) 5M
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.375" x 0.190" Face x 0.395" H (9.53mm x 4.83mm x 10.03mm)
Win Source Part Number 763229-3296W-1-505LF
Family Name 3296
Introduction Date September 25, 1997
ECCN EAR99
Country of Origin Costa Rica
Halogen Free Compliant
Estimated EOL Date 2025
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3296W-1-505LF CAD Model

Description

The Bourns Inc. 763229-3296W-1-505LF is a trimpot 3296 - sealed series electronic component.

  • Manufacturer: Bourns Inc.
  • Win Source Part Number: 763229-3296W-1-505LF
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power: 0.5W
  • Resistance: 5M ohms
  • Turns: 25
  • Adjustment Type: Top Adjustment
  • Resistive Material: Cermet
  • Dimension: Rectangular - 0.375" x 0.190" Face x 0.395" H (9.53mm x 4.83mm x 10.03mm)
  • Alternative Parts: RJ-9W 5M and 3296W-1-505
  • Introduction Date: September 25, 1997
  • Estimated EOL Date: 2025
  • Halogen-Free: Yes
  • EAR99: Compliant
  • Country of Origin: Costa Rica
