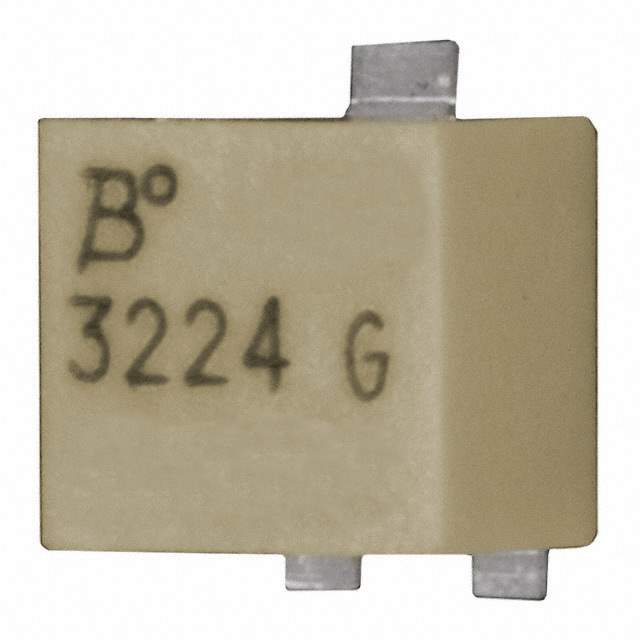

3224G-1-201E Real Image
Same model may have multiple batches, images only for reference.

3224G-1-201E

Part No 3224G-1-201E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 200 OHM 0.25W GW SIDE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Resistance 200 Ohms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Style SMD
Termination Style Gull Wing
Dimension Rectangular - 0.181" x 0.138" Face x 0.154" H (4.60mm x 3.50mm x 3.90mm)
Part Number Series 3224G
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805184-3224G-1-201E
Ultra Librarian 3D Model Ultra Librarian 3224G-1-201E CAD Model

Description

The Bourns Inc. 3224G-1-201E is a cermet resistor component that is designed for use in various applications.

  • Resistance: 200 Ohms
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W
  • Turns: Twelve
  • Adjustment: Side
  • Package: SMD, 0.181" x 0.138" face x 0.154" H (4.60mm x 3.50mm x 3.90mm)
  • Termination Style: Gull-Wing
  • Family: 3224G
  • Popularity: Medium
  • Manufacturer Pack Quantity: 500
  • MSL Level: 1 (unlimited)
