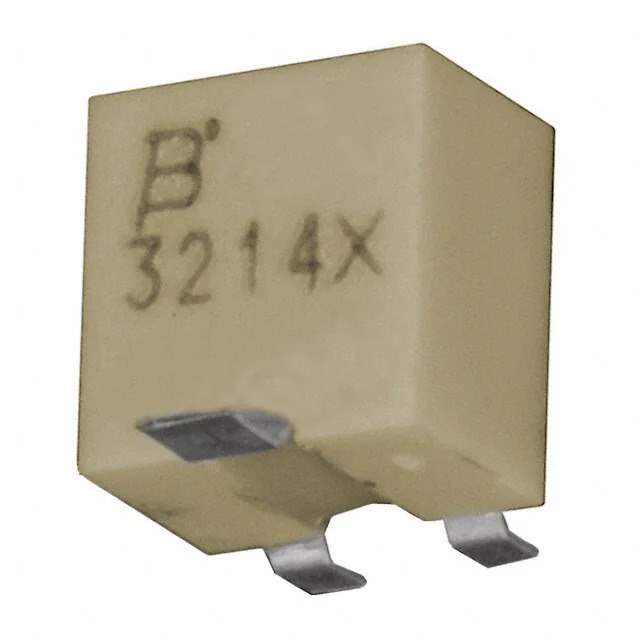

3214X-1-504E

Part No 3214X-1-504E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500K OHM 0.25W GW TOP / 500 kOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 5.0 Turn Top Adjustment
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3214 - Sealed
Package Tape & Reel
Product Status Active
Resistance 500 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 5
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style Gull Wing
Size / Dimension Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm)
Base Product Number 3214X
Standard Package 200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
California Prop 65 Warning Information
Win Source Part Number 855638-3214X-1-504E
Ultra Librarian 3D Model Ultra Librarian 3214X-1-504E CAD Model

Description

The 855638-3214X-1-504E is a potentiometer from Bourns Inc.

  • Series: Trimpot® 3214 - Sealed
  • Application: Surface Mount
  • Size: 0.189" x 0.138" (4.80mm x 3.50mm)
  • Power Rating: 0.25W (1/4W)
  • Resistance: 500 kOhms
  • Tolerance: ±10%
  • Adjustment Type: Top Adjustment
  • Turns: 5
  • Resistive Material: Cermet
  • Termination Style: Gull Wing
  • Packaging: Tape & Reel
