Same model may have multiple batches, images only for reference.

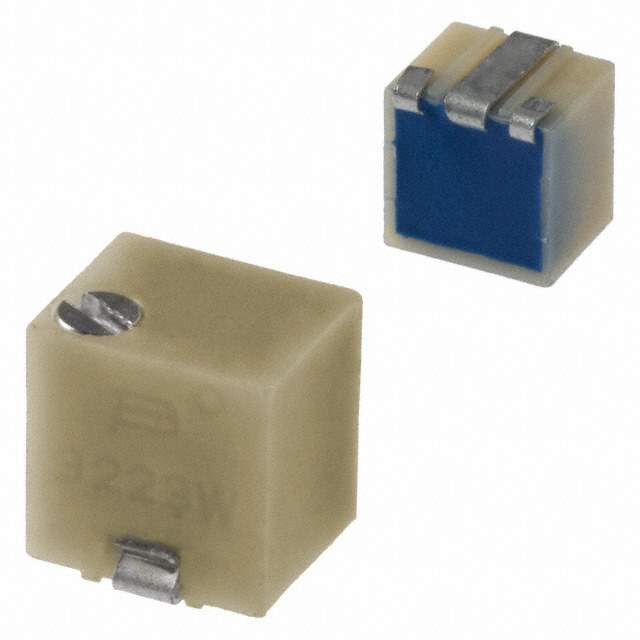

3223W-1-502 Real Image
Same model may have multiple batches, images only for reference.

3223W-1-502

Part No 3223W-1-502
Manufacturer Bourns Inc.
Catalog Potentiometers, Variable Resistors
Description TRIMMER 5K OHM 0.125W J LEAD TOP / 5 kOhms 0.125W, 1/8W J Lead Surface Mount Trimmer Potentiometer Cermet 11.0 Turn Top Adjustment
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Bourns Inc.
Series Trimpot® 3223 - Sealed
Package Tube
Resistance 5 kOhms
Power (Watts) 0.125W, 1/8W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 11
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.154" x 0.125" Face (3.90mm x 3.18mm)
Base Product Number 3223W
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Other Names 3223W1502
Standard Package 50
Win Source Part Number 1026514-3223W-1-502
Ultra Librarian 3D Model Ultra Librarian 3223W-1-502 CAD Model

Description

The Bourns Inc. Trimpot® 3223 - Sealed series trimmer potentiometer is a high-quality electronic component that is perfect for use in a wide range of applications.

  • Resistance: 5 kOhms
  • Power Rating: 0.125W
  • Tolerance: ±20%
  • Temperature Coefficient: ±100ppm/°C
  • Dimension: 0.154" x 0.125" face (3.90mm x 3.18mm)
  • Termination: J leads
  • Adjustment Type: top adjustment
