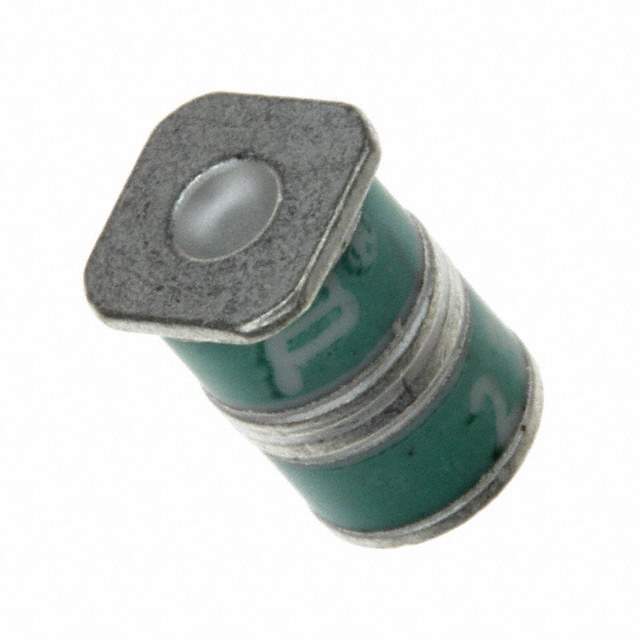

2038-15-SM-RPLF Real Image
Same model may have multiple batches, images only for reference.

2038-15-SM-RPLF

Part No 2038-15-SM-RPLF
Manufacturer Bourns Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 150V 25% 5KA SURFACE MOUNT
Datasheet
2038-15-SM-RPLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Series Mini-TRIGARD 2038
Packaging Reel package
Voltage - DC Spark Over (Nom) 150V
Impulse Discharge Current (8/20μs) 5000A (5kA)
Tolerance ±25%
Number of Poles 3
Fail Short No
Mounting SMD
Package 3-SMD Cylinder Square End
Win Source Part Number 761708-2038-15-SM-RPLF
Family Name 2038
Introduction Date March 26, 2008
ECCN EAR99
Country of Origin Costa Rica
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2038-15-SM-RPLF CAD Model

Description

The Mini-TRIGARD 2038 series is a 3-SMD cylinder square end package that has a voltage - DC spark over (Nom) of 150V.

  • Package: 3-SMD cylinder square end
  • Voltage - DC Spark Over (Nom): 150V
  • Impulse Discharge Current (8/20μs): 5000A (5kA)
  • Tolerance: ±25%
  • Manufacturer: Bourns Inc.
  • Popularity: Medium
  • Supply and Demand Status: Limited
