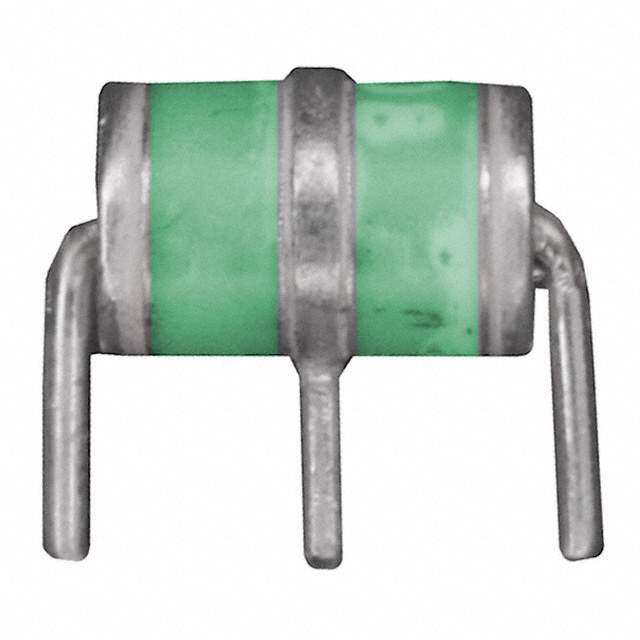

2036-09-B2 Real Image
Same model may have multiple batches, images only for reference.

2036-09-B2

Part No 2036-09-B2
Manufacturer Bourns Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description Miniature 3-Pole Gas Discharge Tube | GDT 90V 20% 10KA THROUGH HOLE
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Tray
Voltage - DC Spark Over (Nom) 90V
Impulse Discharge Current (8/20μs) 10000A (10kA)
Tolerance ±20%
Number of Poles 3
Fail Short No
Mounting Style Through Hole
Manufacturer Package Axial Cylinder, 3 Lead (Radial Bend)
Family Part Number 2036
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1122870-2036-09-B2
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2036-09-B2 CAD Model

Description

The 2036-09-B2 by Bourns Inc. is a part of the circuit protection category.

  • Tolerance: ±20%
  • Voltage - DC Spark Over (Nom): 90V
  • Impulse Discharge Current (8/20μs): 10000A (10kA)
  • Number of Poles: 3
  • Fail Short: Not Applicable
  • Mounting Type: Through Hole
  • Packaging: Tray
  • Family Part Number: 2036
  • Manufacturer Pack Quantity: 100
  • MSL Level: 1 (Unlimited)
  • Supply and Demand Status: Limited
