Same model may have multiple batches, images only for reference.

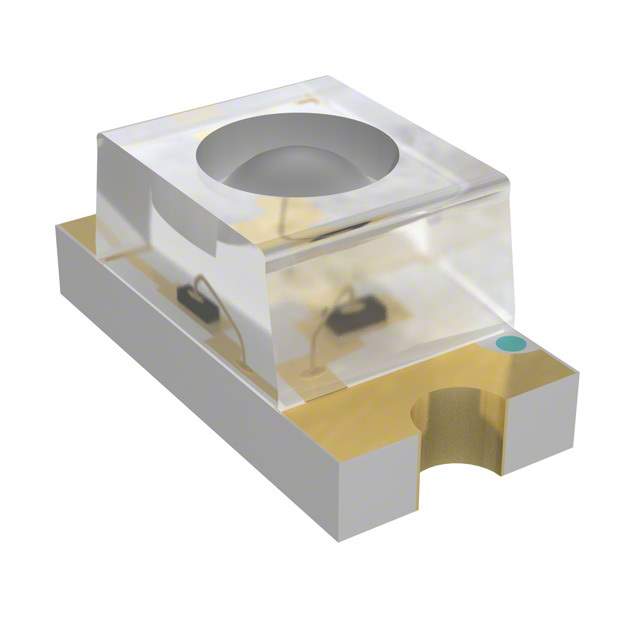

SM1206RC-IL Real Image
Same model may have multiple batches, images only for reference.

SM1206RC-IL

Part No SM1206RC-IL
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED RED CLEAR 1206 SMD / Red 645nm LED Indication - Discrete 2V 1206 (3216 Metric)
Datasheet
SM1206RC-IL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel (TR)
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 2.1mcd
Lens Style Round with Flat Top
Lens Size 1.10mm Dia
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 30°
Mounting SMD (SMT)
Wavelength - Dominant 645nm
Wavelength - Peak 700nm
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.40mm
Base Product Number SM1206
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 3,000
Win Source Part Number 969617-SM1206RC-IL
Ultra Librarian 3D Model Ultra Librarian SM1206RC-IL CAD Model

Description

This LED Indication - Discrete electronic component is a red color, SMD (SMT) mounted, standard configuration LED with a viewing angle of 30 degrees. The manufacturer is Bivar Inc.

  • Color: Red
  • Mounting Type: SMD (SMT)
  • LED Configuration: Standard
  • Viewing Angle: 30 degrees
  • Lens Color: Clear, Colorless
  • Lens Size: 1.10mm Diameter
  • Height: 1.40mm
  • Millicandela Rating: 2.1mcd
  • Forward Voltage: 2V
  • Wavelength: 645nm
  • Peak Wavelength: 700nm
  • Package: 1206 (3216 Metric)
  • Package Type: Tape & Reel (TR)
  • Standard Package: 3,000
