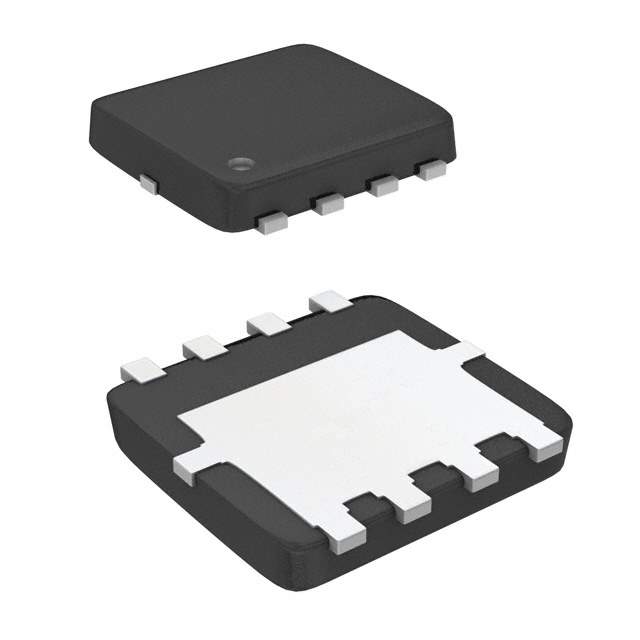

The AON7460 is a MOSFET manufactured by Alpha & Omega Semiconductor Inc.

• Transistor Type: N-Channel
• Drive Voltage: 10V (Max Rds On, Min Rds On)
• Category: discrete semiconductor product
• Supplier Device Package: 8-DFN (3x3)
• FET Feature: not specified
• Technology: designed for high-speed switching applications
• Vds - Drain-Source Breakdown Voltage: 300V
• Id - Continuous Drain Current: 1.2A, 4A
• Rds On (Maximum) @ Id, Vgs: 830mOhm @ 1.2A, 10V
• Gate Source Voltage(th) (Maximum) @ Id: 4.5V @ 250μA
• Gate Charge (Qg) (Maximum) @ Vgs: 8.2nC @ 10V
• Gate Source Voltage (Maximum): ±30V
• Input Capacitance (Ciss) (Maximum) @ Vds: 380pF @ 25V
• Power Dissipation (Maximum): 3.1W, 33W
• Manufacturer Package: 8-PowerVDFN
