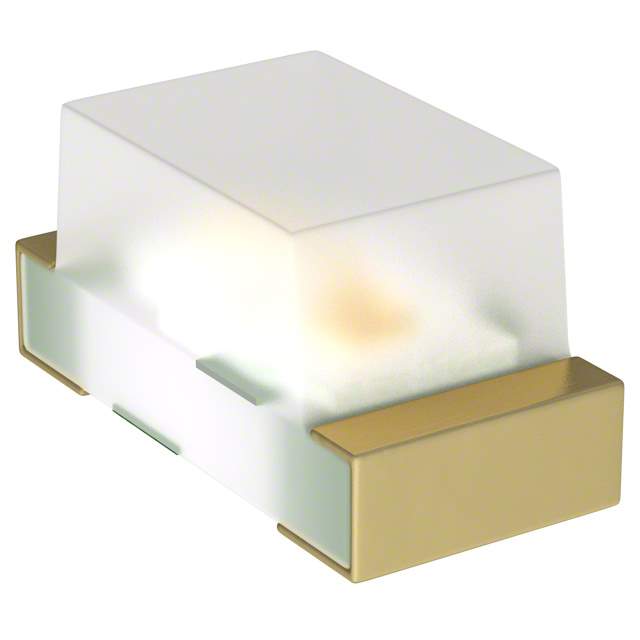

SM0603UV-390 Real Image
Same model may have multiple batches, images only for reference.

SM0603UV-390

Part No SM0603UV-390
Manufacturer Bivar Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER UV 395NM 100MA 603 / Ultraviolet (UV) Emitter 390nm ~ 395nm 3.4V 25mA 130° 0603 (1608 Metric)
Datasheet
SM0603UV-390 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr Bivar Inc.
Package Tape & Reel
Type Ultraviolet (UV)
Current - DC Forward (If) (Max) 25mA
Wavelength 390nm ~ 395nm
Voltage - Forward (Vf) (Typ) 3.4V
Viewing Angle 130°
Orientation Top View
Temperature Range - Operating -30°C ~ 80°C (TA)
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Base Product Number SM0603
Other Names 492-1948-6,492-1948-1,492-1948-2,SM0603UV390
Standard Package 4,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242390-SM0603UV-390
Ultra Librarian 3D Model Ultra Librarian SM0603UV-390 CAD Model

Description

The SM0603UV-390 is an ultraviolet LED emitter that operates with a voltage of 3.4V and a maximum current of 25mA.

  • Voltage: 3.4V
  • Maximum Current: 25mA
  • Viewing Angle: 130 degrees
  • Wavelength: 390nm to 395nm
  • Package: 0603 (1608 Metric)
  • Mounting: SMD (SMT) technology
  • Manufacturer: Bivar Inc.
  • Win Source Part Number: 1242390-SM0603UV-390
