Same model may have multiple batches, images only for reference.

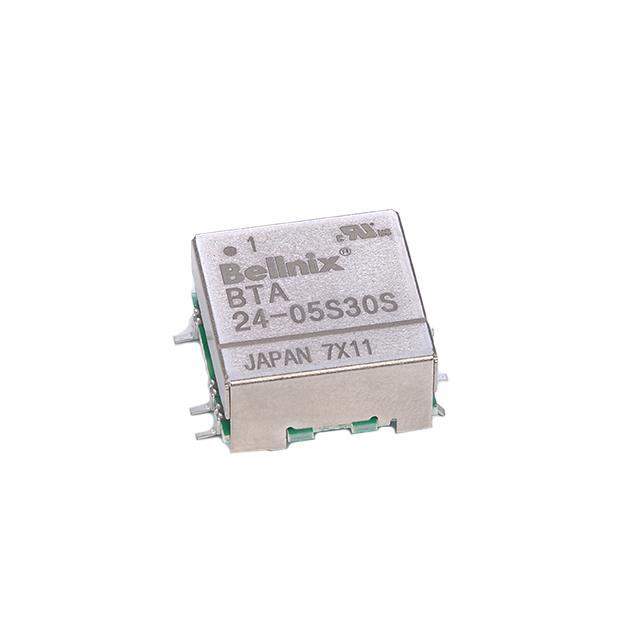

BTA24-12W06D Real Image
Same model may have multiple batches, images only for reference.

BTA24-12W06D

Part No BTA24-12W06D
Manufacturer Bellnix Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1.4W
Datasheet
BTA24-12W06D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Estimated Pruduction Lead Time 11 Weeks
Features Isolated Module DC DC Converter Output 12V -12V - - 60mA, 60mA 18V - 36V Input
Manufacturer Bellnix Co., Ltd.
Series BTA (1.5W)
Package Bulk
Operating Temperature Range -40°C ~ 85°C (With Derating)
Mounting Through Hole
Package Module
Family Name BTA24
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Quantity per package 50
Popularity High
Supply and Demand Status Balance
Win Source Part Number 913665-BTA24-12W06D
Ultra Librarian 3D Model Ultra Librarian BTA24-12W06D CAD Model

Description

The BTA24-12W06D is an isolated module DC DC converter with a package type of bulk and mounting type of through hole.

  • Package Type: bulk
  • Mounting Type: through hole
  • Series: BTA (1.5W)
  • Operating Temperature Range: -40°C to 85°C (with derating)
  • Output: 12V -12V - - 60mA, 60mA 18V - 36V input
  • Family Name: BTA24
  • Category: power supplies - board mount
