Same model may have multiple batches, images only for reference.

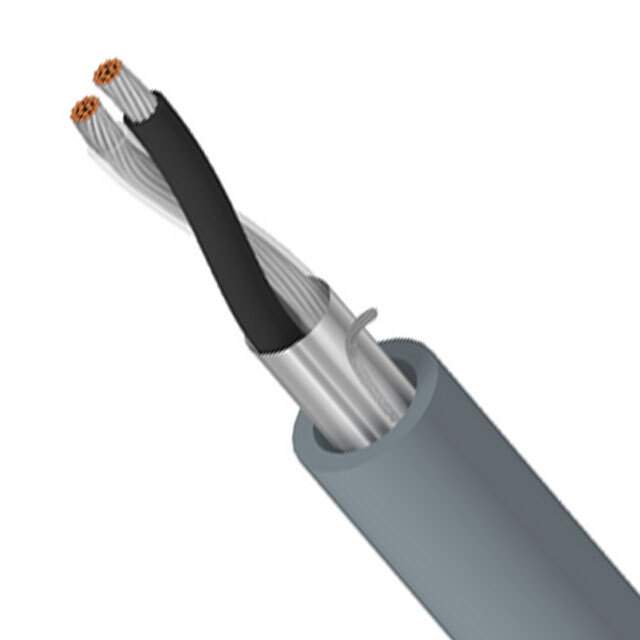

8761 060U500 Real Image
Same model may have multiple batches, images only for reference.

8761 060U500

Part No 8761 060U500
Manufacturer Belden Inc.
Catalog Multiple Conductor Cables
Description CABLE 2COND 22AWG CHROME 500'
Datasheet
8761 060U500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cables, Wires
Manufacturer Belden Inc.
Status Active
Cable Type Multi-Conductor
Number of Conductors 2 (1 Pair Twisted)
Wire Gauge 22 AWG
Conductor Strand 7/30
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.175" (4.45mm)
Shield Type Foil
Length 500.0' (152.4m)
Jacket Color Chrome
Features Drain Wire
Temperature Range - Operating -20°C to 60°C
Jacket (Insulation) Thickness 0.025" (0.63mm)
Conductor Insulation Polyethylene (PE)
Shield Material Aluminum
Shield Coverage 100%
Win Source Part Number 1036000-8761 060U500
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 8761 060U500 CAD Model

Description

The 1036000-8761 060U500 is a 22 AWG multi-conductor cable with a length of 500.0' (152.4m).

  • AWG: 22
  • Length: 500.0' (152.4m)
  • Conductors: 2 (1 Pair Twisted)
  • Shield Coverage: 100%
  • Shield Material: Aluminum
  • Conductor Material: Copper, Tinned
  • Jacket Material: Poly-Vinyl Chloride (PVC)
  • Jacket Thickness: 0.025" (0.63mm)
  • Operating Temperature: -20°C to 60°C
  • Manufacturer: Belden Inc.
