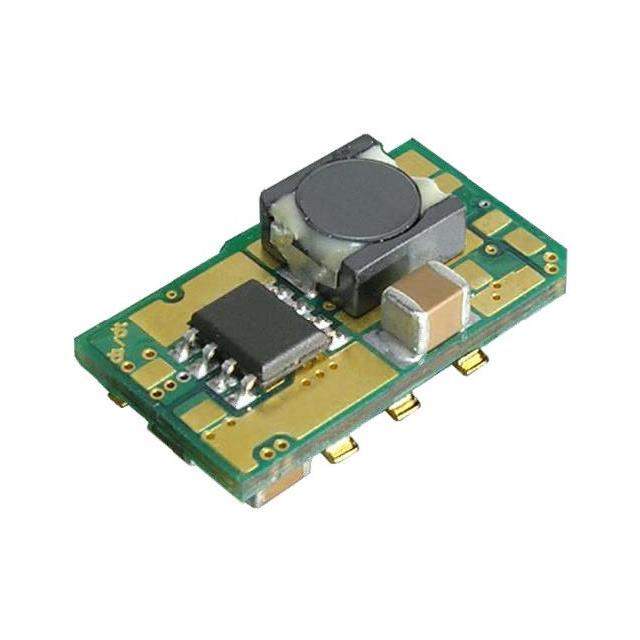

YM05S05-G Real Image
Same model may have multiple batches, images only for reference.

YM05S05-G

Part No YM05S05-G
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.7525-3.63V 18W / Non-Isolated PoL Module DC DC Converter 1 Output 0.7525 ~ 3.63V 5A 3V - 5.5V Input
Datasheet
YM05S05-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Bel Power Solutions
Series Y (18W)
Package Tape & Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 3V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.7525 ~ 3.63V
Current - Output (Max) 5A
Power (Watts) 18 W
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 94%
Mounting SMD (SMT)
Package / Case 5-SMD Module
Dimension 0.80" L x 0.45" W x 0.26" H (20.3mm x 11.4mm x 6.6mm)
Control Features Enable, Active Low
Base Product Number YM05S05
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 179-2716-2-ND,,179-2716-1-ND,179-YM05S05-GDKR,179-2716-6,-YM05S05-G-Q,179-2716-1,179-2716-2,YM05S05-G-Q,179-2366-1,179-2366-6-ND,YM05S05G,179-2716-6-ND,179-2366-1-ND,-YM05S05-G-Q-ND,179-YM05S05-GCT,179-2366-2-ND,179-2366-2,179-2366-ND,-1444-YM05S05-GCT,179-YM05S05-GTR,179-2366-6,179-2366
Standard Package 200
Win Source Part Number 1175892-YM05S05-G
Ultra Librarian 3D Model Ultra Librarian YM05S05-G CAD Model

Description

The YM05S05-G is a non-isolated PoL module power supply with a remote on/off, overcurrent protection, over temperature protection, and under voltage lockout features.

  • Application: ITE (Commercial)
  • Package: 200
  • Power Output: 18W
  • Voltage Input: 3V to 5.5V
  • Output: Single
  • Maximum Current Output: 5A
  • Voltage Output: 0.7525V to 3.63V
  • Efficiency: 94%
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.80" L x 0.45" W x 0.26" H (20.3mm x 11.4mm x 6.6mm)
  • Mounting: SMD (SMT)
  • Packaging: 5-SMD module
