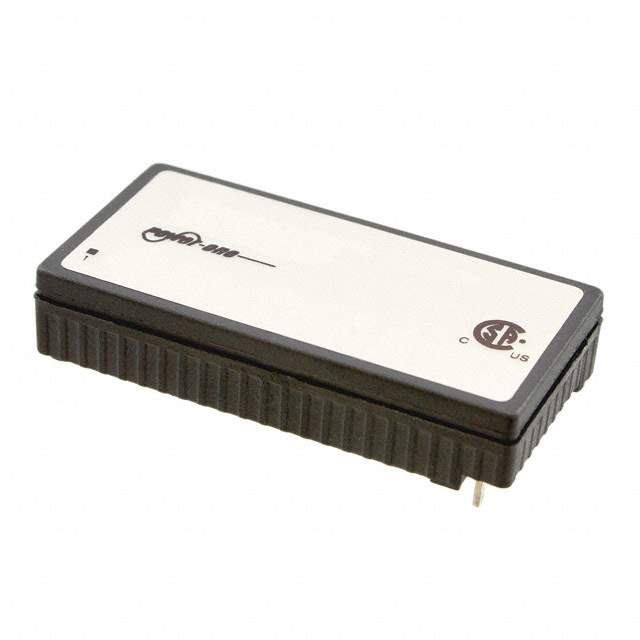

20IMX7-05-05-8

Part No 20IMX7-05-05-8
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 5V 7W / 7-Watt DC-DC Converters
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bel Power Solutions
Packaging Bulk
Type Isolated Module, Conformal Coated
Number of Outputs 2
Voltage - Input (Min) 8.4V
Maximum Input Voltage 36V
Voltage - Output 1 5V
Voltage - Output 2 5V
Current - Output (Maximum) 600mA, 600mA
Power (Watts) 7W
Voltage - Isolation 1.5kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 81%
Mounting Style Through Hole
Manufacturer Package 14-DIP Module
Dimension 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.4mm)
Manufacturer Pack Quantity 60
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807531-20IMX7-05-05-8
Ultra Librarian 3D Model Ultra Librarian 20IMX7-05-05-8 CAD Model

Description

This electronic component is an Isolated Module with Conformal Coated packaging.

  • Mounting Style: Through Hole
  • Manufacturer: Bel Power Solutions
  • Win Source Part Number: 807531-20IMX7-05-05-8
  • Features: Remote On/Off, OCP, OTP, OVP, SCP, UVLO
  • Applications: ITE (Commercial), Railway Applications
  • Efficiency: 81%
  • Voltage Isolation: 1.5kV
  • Outputs: 2
  • Voltage - Input (min): 8.4V
  • Voltage - Output 1: 5V
  • Voltage - Output 2: 5V
  • Dimension: 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.4mm)
  • Maximum Input Voltage: 36V
  • Current Output (maximum): 600mA, 600mA
  • Manufacturer Pack Quantity: 60
  • MSL Level: 1 (Unlimited)
