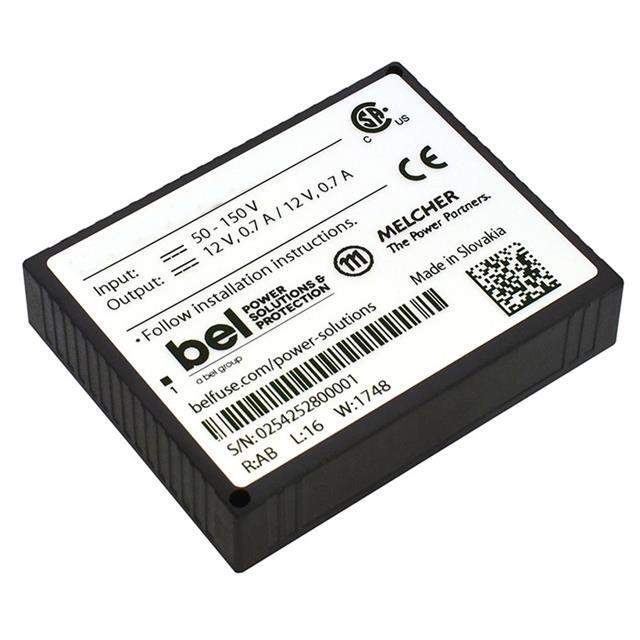

20IMX15-12-12-8G Real Image
Same model may have multiple batches, images only for reference.

20IMX15-12-12-8G

Part No 20IMX15-12-12-8G
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 12V 15W / Isolated Module, Conformal Coated DC DC Converter 2 Output 12V 12V 650mA, 650mA 8.4V - 36V Input
Datasheet
20IMX15-12-12-8G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Bel Power Solutions
Series Melcher IMX15 (15W)
Package Bulk
Type Isolated Module, Conformal Coated
Number of Outputs 2
Voltage - Input (Min) 8.4V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 12V
Current - Output (Max) 650mA, 650mA
Power (Watts) 15 W
Voltage - Isolation 2.1 kV
Applications ITE (Commercial) , Railway
Features OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 88%
Mounting Type Through Hole
Package / Case 17-DIP Module
Size / Dimension 2.00" L x 1.60" W x 0.41" H (50.8mm x 40.6mm x 10.5mm)
Base Product Number 20IMX15
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1338293-20IMX15-12-12-8G
Ultra Librarian 3D Model Ultra Librarian 20IMX15-12-12-8G CAD Model

Description

The Melcher IMX15 (15W) is a power supply board mount DC DC converter that comes in an isolated module, conformal coated type.

  • Features: OTP, OVP, SCP, UVLO
  • Package: Bulk
  • Size/Dimension: 2.00" L x 1.60" W x 0.41" H (50.8mm x 40.6mm x 10.5mm)
  • Applications: ITE (Commercial) and Railway
  • Standard Package: 10
  • Power Output: 15W
  • Voltage Isolation: 2.1 kV
  • Outputs: Two
  • Maximum Current Output: 650mA each
  • Input Voltage: 8.4V to 36V
  • Output Voltage: 12V for both outputs
  • Efficiency: 88%
  • Mounting Type: Through Hole
  • Package/Case: 17-DIP Module
  • Operating Temperature: -40°C ~ 85°C
