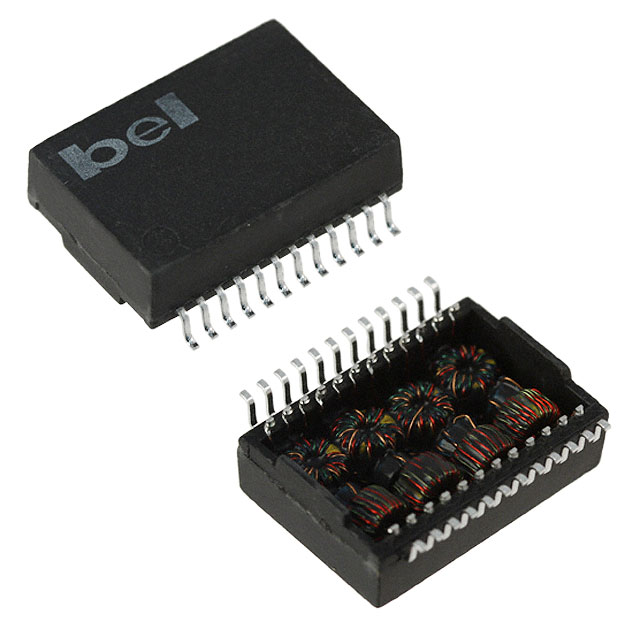

Same model may have multiple batches, images only for reference.
S558-5999-M8-F Bel Fuse Inc.
Same model may have multiple batches, images only for reference.

S558-5999-M8-F

Part No S558-5999-M8-F
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description MODULE XFRMR LAN GIGABIT 24P SMD / 350μH LAN Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
S558-5999-M8-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Bel Fuse Inc.
Package Tape & Reel
Product Status Active
Transformer Type LAN
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.690" L x 0.480" W (17.53mm x 12.20mm)
Height - Seated (Max) 0.230" (5.84mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 380 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 307373-S558-5999-M8-F
Ultra Librarian 3D Model Ultra Librarian S558-5999-M8-F CAD Model

Description

The 314535 is a pulse transformer designed for use in transformers - pulse transformers category.

  • Type: Pulse Transformer
  • Category: transformers - pulse transformers
  • Mounting Type: Surface Mount
  • Size: 0.690" L x 0.480" W (17.53mm x 12.20mm)
  • Transformer Type: LAN
  • Inductance: 350µH
  • Seated Height: 0.230" (5.84mm)
  • Operating Temperature: 0°C to 70°C
  • Package: Tape & Reel
  • Standard Package: 380 pcs
  • Status: Active
  • Manufacturer: Bel Fuse Inc.
  • REACH: Unaffected
  • MSL Level: 2 (1 Year)
  • ET (Volt-Time): Not available
