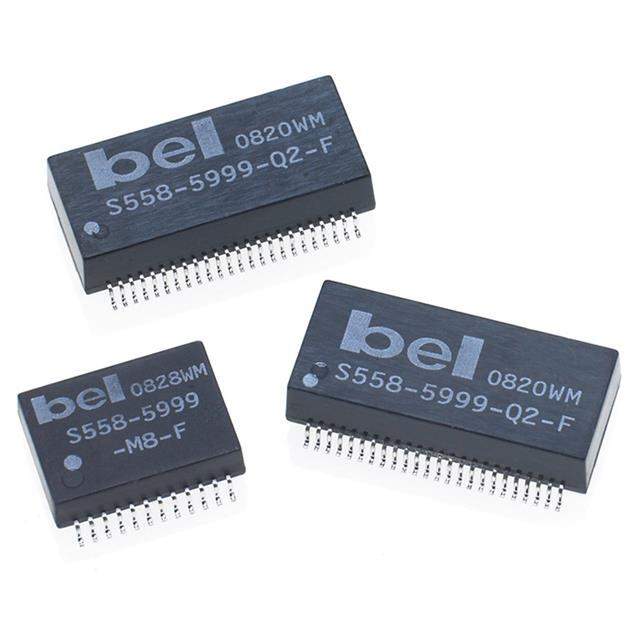

S558-5999-AR-F Real Image
Same model may have multiple batches, images only for reference.

S558-5999-AR-F

Part No S558-5999-AR-F
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description XFRMR MOD LAN GIGABIT EXTEMP 24P / 350µH LAN Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
S558-5999-AR-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bel Fuse Inc.
Package Tape & Reel (TR)
Transformer Type LAN
Inductance 350µH
Mounting SMD (SMT)
Dimension 0.690" L x 0.480" W (17.53mm x 12.20mm)
Height - Seated (Max) 0.230" (5.84mm)
Temperature Range - Operating -40°C ~ 85°C
Other Names S5585999AR-F
Standard Package 380
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232770-S558-5999-AR-F
Ultra Librarian 3D Model Ultra Librarian S558-5999-AR-F CAD Model

Description

The S558-5999-AR-F is a pulse transformer manufactured by Bel Fuse Inc.

  • Application: LAN circuit
  • Inductance: 350 microhenries
  • Mounting: Surface-mount device
  • Package: Tape and reel
  • MSL level: 2
  • Estimated EOL date: 2028
