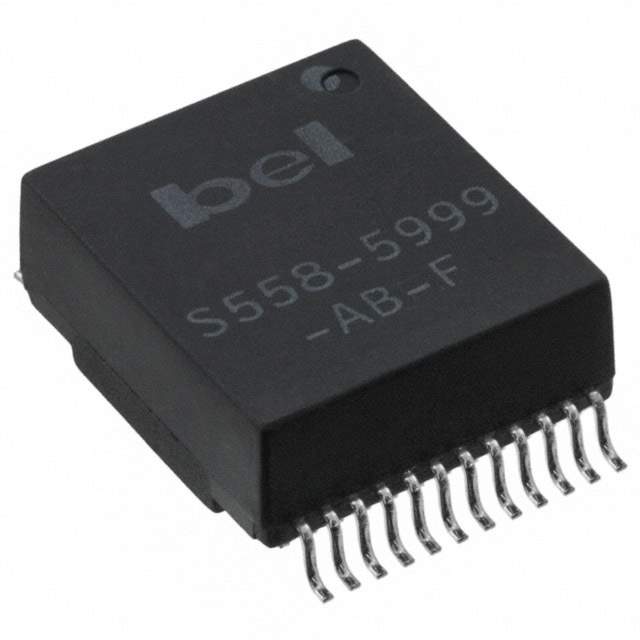

S558-5999-AB-F Real Image
Same model may have multiple batches, images only for reference.

S558-5999-AB-F

Part No S558-5999-AB-F
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description XFRMR MOD LAN GIGABIT EXTEMP 24P / 350µH LAN Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
S558-5999-AB-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bel Fuse Inc.
Package Tape & Reel
Transformer Type LAN
Inductance 350µH
Mounting SMD (SMT)
Dimension 0.522" L x 0.600" W (13.26mm x 15.24mm)
Height - Seated (Max) 0.250" (6.35mm)
Temperature Range - Operating -40°C ~ 85°C
Other Names 507-1573-1,507-1573-2,S558-5999-AB-F,S5585999AB-F,507-1573-6,S5585999ABF
Standard Package 320
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232776-S558-5999-AB-F
Ultra Librarian 3D Model Ultra Librarian S558-5999-AB-F CAD Model

Description

The S558-5999-AB-F is a pulse transformer manufactured by Bel Fuse Inc. The transformer is designed for use in LAN applications and has an inductance of 350µH. The device is rated for operation over a temperature range of -40°C to 85°C and has a standard package of 320.
