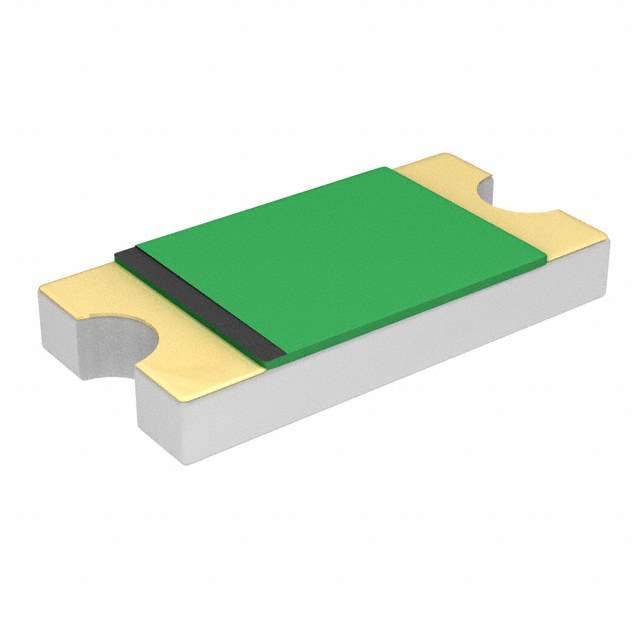

Same model may have multiple batches, images only for reference.

0ZCJ0100FF2E

Name: 0ZCJ0100FF2E
Brand: Bel Fuse Inc.
SKU: 1334694
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	0ZCJ0100FF2E
Manufacturer	Bel Fuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 6V 1A 1206 / Polymeric PTC Resettable Fuse 6V 1 A Ih Surface Mount 1206 (3216 Metric), Concave
Datasheet	0ZCJ0100FF2E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Manufacturer	Bel Fuse Inc.
Packaging	Reel - TR
Type	Polymeric
Voltage - Max	6V
Current - Max	100 A
Current - Hold (Ih) (Max)	1 A
Current - Trip (It)	1.8 A
Time to Trip	300 ms
Resistance - Initial (Ri) (Min)	55 mOhms
Resistance - Post Trip (R1) (Max)	210 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	AEC-Q200
Mounting	Surface Mount
Case / Package	1206 (3216 Metric), Concave
Size / Dimension	0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max)	0.039" (1.00mm)
Approval Agency	AEC-Q200, cURus, TUV
RoHS Status	ROHS3 Compliant
MSL Level	2A (4 Weeks)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Other Part Number	507-1806-2,507-1806-1,507-1806-6
Standard Package	3,000
Win Source Part Number	1334694-0ZCJ0100FF2E
Ultra Librarian 3D Model	Ultra Librarian 0ZCJ0100FF2E CAD Model

Alternative Products

Description

The Bel Fuse Inc. manufactured 1334694-0ZCJ0100FF2E is a polymeric type PTC resettable fuse.

Manufacturer: Bel Fuse Inc.
Product Number: 1334694-0ZCJ0100FF2E
Type: Polymeric PTC resettable fuse
Size/Dimension: 0.128" L x 0.065" W (3.25mm x 1.65mm)
Packaging: Surface mount
Current Rating: 100 A
Voltage: 6V
Current Hold (Ih): 1 A
Current Trip (It): 1.8 A
Time to Trip: 300 ms
Temperature Range: -40°C to 85°C
Resistance (initial): 55 mOhms
Resistance (post-trip): 210 mOhms
ECCN: EAR99
REACH: Unaffected
