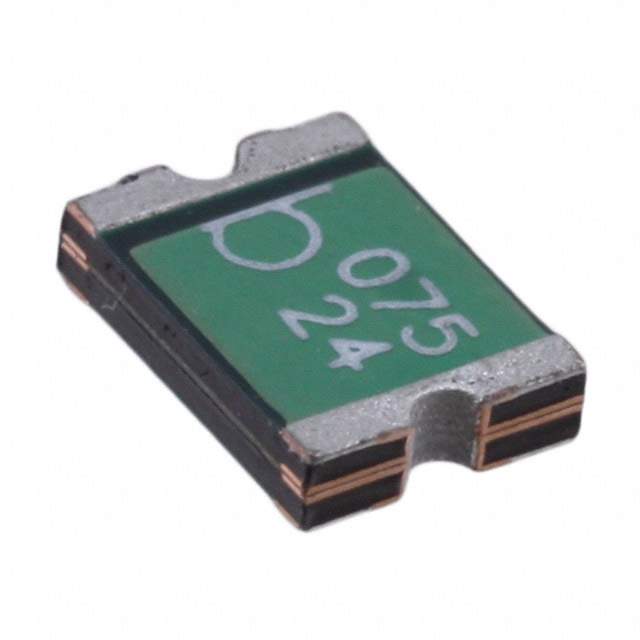

0ZCC0150BF2C Real Image
Same model may have multiple batches, images only for reference.

0ZCC0150BF2C

Part No 0ZCC0150BF2C
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 24V 1.5A 1812 / Polymeric PTC Resettable Fuse 24V 1.5 A Ih Surface Mount 1812 (4532 Metric), Concave
Datasheet
0ZCC0150BF2C Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Manufacturer Bel Fuse Inc.
Packaging Reel - TR
Product Status Obsolete
Type Polymeric
Voltage - Max 24V
Current - Max 100 A
Current - Hold (Ih) (Max) 1.5 A
Current - Trip (It) 3 A
Time to Trip 1.5 s
Resistance - Initial (Ri) (Min) 40 mOhms
Resistance - Post Trip (R1) (Max) 120 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Case / Package 1812 (4532 Metric), Concave
Size / Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.061" (1.55mm)
Approval Agency cURus, TUV
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Part Number 0ZCC0150BF,507-1505-6,507-1505-2,507-1505-1
Standard Package 2,000
Win Source Part Number 1334693-0ZCC0150BF2C
Ultra Librarian 3D Model Ultra Librarian 0ZCC0150BF2C CAD Model

Description

Bel Fuse Inc. offers a reliable and high-quality PTC resettable fuse under the Win Source Part Number 1334693-0ZCC0150BF2C.

  • Manufacturer: Bel Fuse Inc.
  • Win Source Part Number: 1334693-0ZCC0150BF2C
  • Category: Circuit protection
  • Packaging: Reel - TR
  • Type: Polymeric
  • Size/Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm)
  • Maximum Thickness: 0.061" (1.55mm)
  • Voltage Rating: 24V
  • Maximum Current: 100A
  • Current Hold (Ih) (Max): 1.5A
  • Current Trip (It): 3A
  • Time to Trip: 1.5s
  • Temperature Range: -40°C to 85°C
  • Case/Package: 1812 (4532 Metric)
  • Initial Resistance (Ri) (Min): 40mOhms
  • Post-Trip Resistance (R1) (Max): 120mOhms
  • ECCN: EAR99
  • REACH: Unaffected
  • Status: Obsolete
  • Approval Agency: cURus, TUV
  • Moisture Sensitivity Level (MSL): 2A (4 Weeks)
