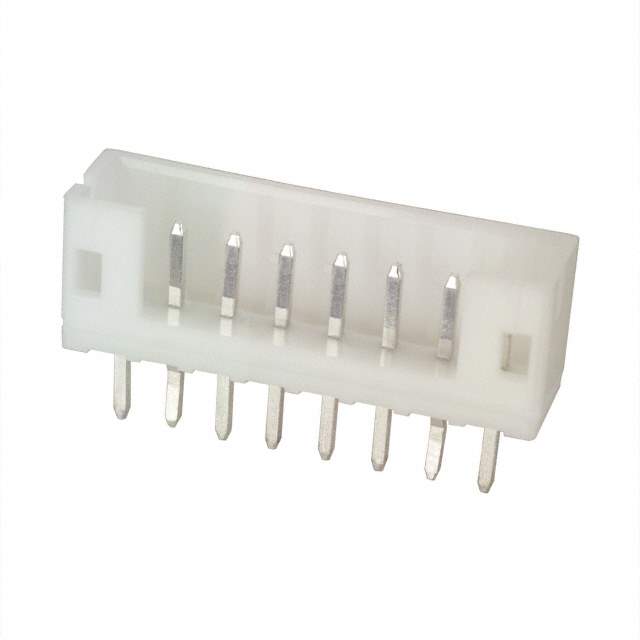

B8B-PH-K-S

Name: B8B-PH-K-S
Brand: JST Sales America Inc.
SKU: 1293284
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	B8B-PH-K-S
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	PH
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	8
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.130" (3.30mm)
Contact Length - Post	0.134" (3.40mm)
Overall Contact Length	0.333" (8.45mm)
Insulation Height	0.236" (6.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	2A
Voltage Rating	100V
Mated Stacking Heights	8mm
Other Names	455-1275
Standard Package	500
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293284-B8B-PH-K-S
Ultra Librarian 3D Model	Ultra Librarian B8B-PH-K-S CAD Model

Alternative Products

Description

The 1293284-B8B-PH-K-S is a rectangular connector header with male pins manufactured by JST Sales America Inc.

Series: PH
Positions Loaded: 8
Termination: Press-Fit and Solder
Fastening Type: Detent Lock
Voltage Rating: 100V
Current Rating: 2A
Contact Material: Brass
Insulation Material: Polyamide (PA66), nylon 6/6
Shrouding: Shrouded - 4 Wall
Style: Board to Cable/Wire
Pitch Mating: 0.079" (2.00mm)
Contact Finish Mating: Tin-Lead
Contact Length (Mating): 0.130" (3.30mm)
Contact Length (Post): 0.134" (3.40mm)
Overall Contact Length: 0.333" (8.45mm)
Insulation Height: 0.236" (6.00mm)
Contact Shape: Square
Temperature Range: -25°C ~ 85°C
Mounting: Through Hole
Packaging: Bulk
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4040
Product Status: Obsolete
RoHS: Non-Compliant
Other Names: 455-1275
