Same model may have multiple batches, images only for reference.

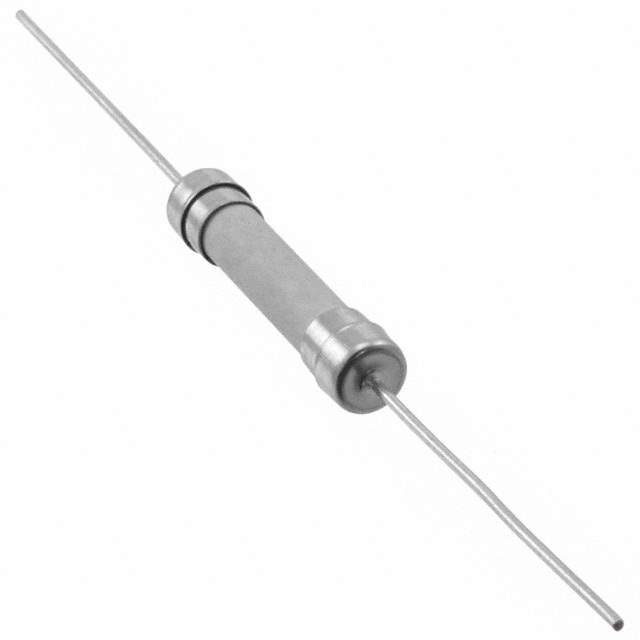

0ADEP9120-RE Real Image
Same model may have multiple batches, images only for reference.

0ADEP9120-RE

Part No 0ADEP9120-RE
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE CERAMIC 12A 500VAC/VDC 3AB / 12 A 500 V AC 500 V DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Datasheet
0ADEP9120-RE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bel Fuse Inc.
Series 0ADEP
Package Bulk
Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 12 A
Voltage Rating - AC 500 V
Voltage Rating - DC 500 V
Response Time Fast Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Breaking Capacity @ Rated Voltage 30kA AC, 20kA DC
Melting I2t 140
Approval Agency cURus
Temperature Range - Operating -50°C ~ 105°C
Dimension 0.268" Dia x 1.291" L (6.81mm x 32.79mm)
DC Cold Resistance 0.0123 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 0ADEP9120RE,507-2100
Standard Package 1,000
Win Source Part Number 983277-0ADEP9120-RE
Ultra Librarian 3D Model Ultra Librarian 0ADEP9120-RE CAD Model

Description

The 0ADEP9120-RE is a fast-blow ceramic cartridge fuse manufactured by Bel Fuse Inc.

  • Voltage Rating: 500V AC and DC
  • Current Rating: 12A
  • Breaking Capacity: 30kA AC and 20kA DC
  • Standard Package: 1,000
  • Mounting Type: Through-hole
  • Temperature Range: -50°C to 105°C
  • Response Time: Fast
  • REACH: Unaffected
  • Approval Agency: cURus
