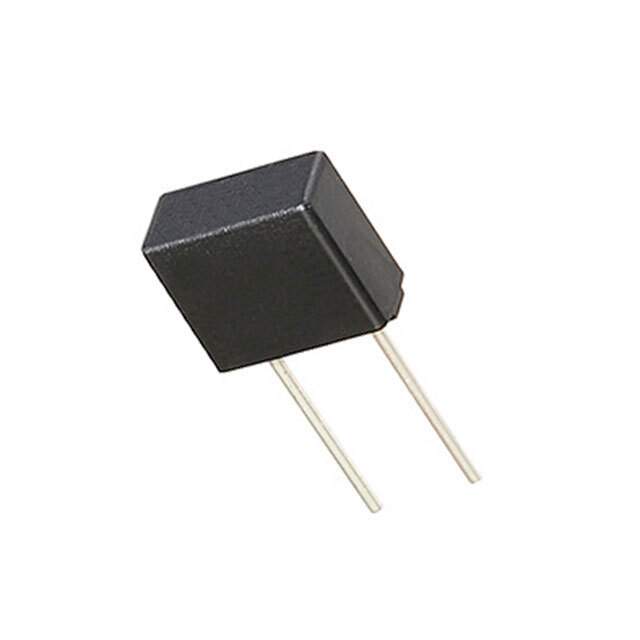

0697A2500-01 Real Image
Same model may have multiple batches, images only for reference.

0697A2500-01

Part No 0697A2500-01
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description Fuse Micro 2.5A 250VAC Slow Blow 2-Pin Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CQC, PSE, VDE, cURus
Mounting SMD (SMT)
Case / Package Radial
Current Rating 2.5 A
Height 7.7978 mm
Length 8.3566 mm
Maximum Operating Temperature 125 °C
Min Operating Temperature -55 °C
Mount Through Hole
Packaging Bulk
Resistance 25 mΩ
RoHS Compliant
Voltage Rating (AC) 250 V
Voltage Rating (DC) 63 V
Width 3.9878 mm
Win Source Part Number 1040860-0697A2500-01
Categories Fuses
Manufacturer Bel Fuse Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 0697A2500-01 CAD Model

Description

The Bel Fuse Inc. 0697A2500-01 is a 2.5A radial fuse.

  • Voltage Rating: 250V AC and 63V DC
  • Resistance: 25mΩ
  • Approvals: CQC, PSE, VDE, and cURus
  • RoHS Compliant: Yes
  • Mount: Through-hole
  • Maximum Operating Temperature: 125°C
  • Minimum Operating Temperature: -55°C
  • Length: 8.3566mm
  • Width: 3.9878mm
  • Height: 7.7978mm
  • Packaging: Bulk
  • Series: RSTA
  • Use: General-purpose
