Same model may have multiple batches, images only for reference.

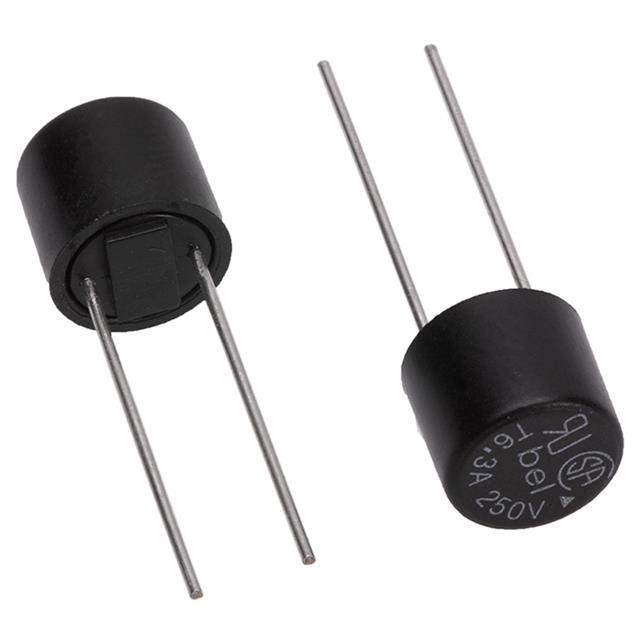

0691-0800-02 Real Image
Same model may have multiple batches, images only for reference.

0691-0800-02

Part No 0691-0800-02
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description MRF 800-AMMO (0691-0800-02) 2-Pin Radial Fuse Round Fast Acting IEC Ammo Pack 800mA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CE, CSA, SEMKO, VDE, cULus
Case / Package Radial
Current Rating 800 mA
Height 7.6962 mm
Max Operating Temperature 125 °C
Min Operating Temperature -55 °C
Mount Through Hole
Number of Pins 2
Resistance 71 mΩ
RoHS Compliant
Voltage Rating (AC) 250 V
Win Source Part Number 1173107-0691-0800-02
Categories Fuses
Manufacturer Bel Fuse Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 0691-0800-02 CAD Model

Description

The Bel Fuse Inc. 1173107-0691-0800-02 fuse is a radial package through-hole component that is used for circuit protection in electronic devices.

  • Current Rating: 800mA
  • Voltage Rating: 250V AC
  • Resistance: 71mΩ
  • Approval Agencies: CE, CSA, SEMKO, VDE, cULus
  • Height: 7.6962mm
  • Mounting Pins: 2
  • Temperature Range: -55 °C to 125 °C
  • RoHS Compliant: Yes
