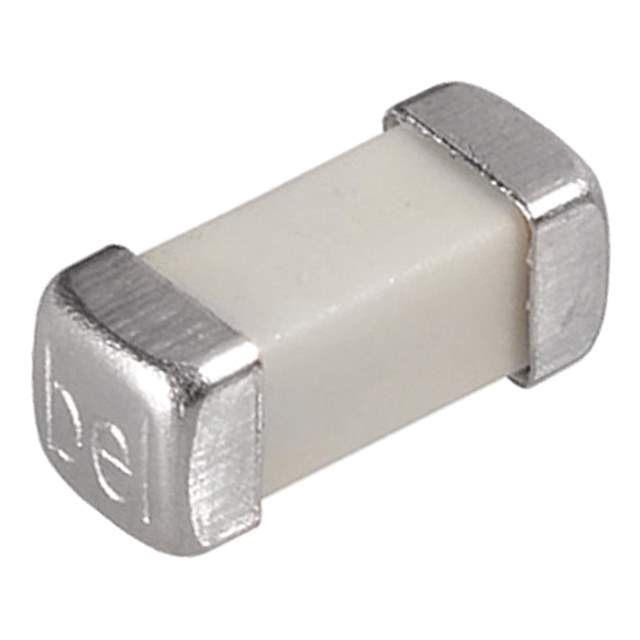

0678L9150-02 Real Image
Same model may have multiple batches, images only for reference.

0678L9150-02

Part No 0678L9150-02
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BOARD MNT 15A 250VAC 72VDC / Fuse Chip Medium Time Delay Acting 15A 250V SMD Solder Pad 3912 9.8 X 3.05 X 4.06mm Ceramic T/R
Datasheet
0678L9150-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bel Fuse Inc.
Series 0678L
Packaging Reel package
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 15A
Voltage Rating - AC 250V
Voltage Rating - DC 72V
Response Time Medium
Package 2-SMD, Square End Block
Mounting SMD
Breaking Capacity @ Rated Voltage 100A AC, 130A DC
Melting I2t 110
Approvals cURus
Operating Temperature Range -55°C ~ 125°C
Dimension 0.386" L x 0.120" W x 0.125" H (9.80mm x 3.05mm x 3.18mm)
Resistance 0.0036 Ohm
Win Source Part Number 778213-0678L9150-02
Popularity Medium
Supply and Demand Status Limited
Family Name 0678L
Introduction Date June 07, 2016
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 0678L9150-02 CAD Model

Description

The Bel Fuse Inc. 0678L9150-02 from Bel Fuse Inc. is a 15A square end block fuse designed for board mount (cartridge style excluded).

  • Voltage Rating AC: 250V AC
  • Voltage Rating DC: 72V DC
  • Breaking Capacity @ Rated Voltage AC: 100A AC
  • Breaking Capacity @ Rated Voltage DC: 130A DC
  • Packaging: Reel
  • Mounting Style: Surface mount
  • Series: 0678L
  • Resistance: 0.0036 Ohm
  • Operating Temperature Range: -55°C to 125°C
  • Compliance: ROHS
  • Material: Halogen-free
  • Applications: Electronic devices requiring circuit protection
