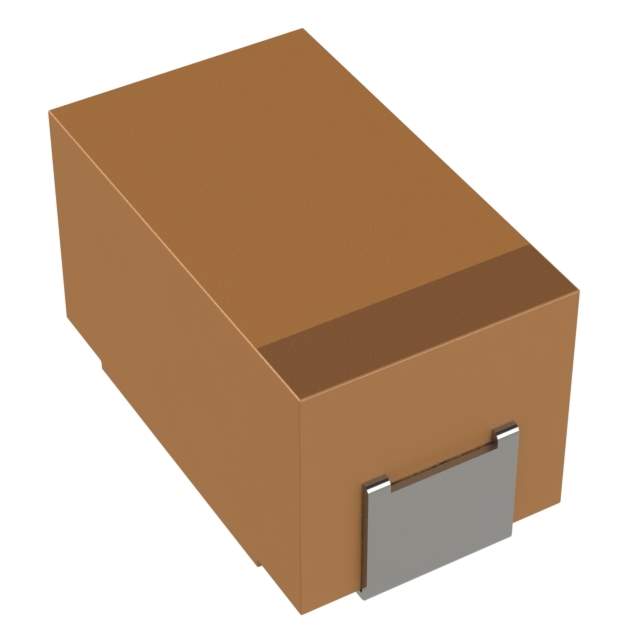

TPSE686M020R0150 Real Image
Same model may have multiple batches, images only for reference.

TPSE686M020R0150

Part No TPSE686M020R0150
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description CAP TANT 68UF 20V 20% 2917
Datasheet
TPSE686M020R0150 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Capacitance 68μF
Tolerance ±20%
Voltage Rating 20V
Type Molded
ESR 150 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.169" (4.30mm)
Manufacturer Size Code E
Features General Purpose
Win Source Part Number 048222-TPSE686M020R0150
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TPSE686M020R0150 CAD Model

Description

AVX Corporation's 68μF Molded Capacitor is a general-purpose capacitor with a voltage rating of 20V.

  • Voltage Rating: 20V
  • Mounting Type: SMD (SMT)
  • Height: 0.169" (4.30mm)
  • ESR: 150 mOhm
  • Packaging: Reel - TR
  • Tolerance: ±20%
  • Temperature Range: -55°C to 125°C
  • Manufacturer Size Code: E
  • Supply and Demand Status: Balanced
