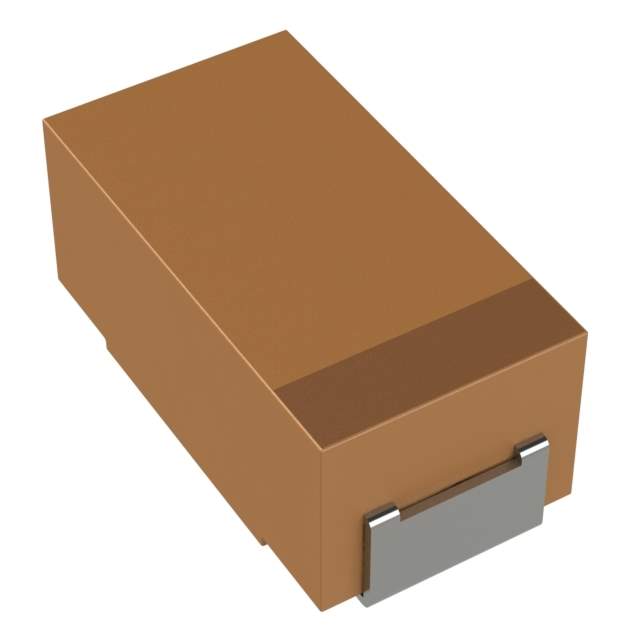

TPSC226M016R0150 Real Image
Same model may have multiple batches, images only for reference.

TPSC226M016R0150

Part No TPSC226M016R0150
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description CAP TANT 22UF 16V 20% 2312 / Cap Tant Solid 22uF 16V C CASE 20% (6 X 3.2 X 2.6mm) Inward L SMD 6032-28 0.15 Ohm 125°C T/R
Datasheet
TPSC226M016R0150 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Series TPS
Packaging Reel package
Capacitance 22μF
Tolerance ±20%
Voltage Rating DC 16V
Type Molded
ESR (Equivalent Series Resistance) 150 mOhm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 2312
Dimension 0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Maximum) 0.110" (2.80mm)
Manufacturer Size Code C
Features General
Win Source Part Number 798289-TPSC226M016R0150
Popularity Medium
Supply and Demand Status Limited
Family Name TPS
Introduction Date May 05, 2009
ECCN EAR99
Country of Origin Czech Republic
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TPSC226M016R0150 CAD Model

Description

The AVX Corporation TPSC226M016R0150 capacitor is a molded type component.

  • Temperature Range: -55°C to 125°C
  • Capacitance: 22μF
  • Tolerance: ±20%
  • ESR: 150 mOhm
  • Package: 2312
  • Mounting: Surface-Mount
  • Applications: General Purpose
  • Voltage Rating DC: 16V
  • Height: 0.110 inches
  • Halogen-Free Compliant: Yes
  • Popularity: Medium
  • Estimated EOL Date: 2028
