Same model may have multiple batches, images only for reference.

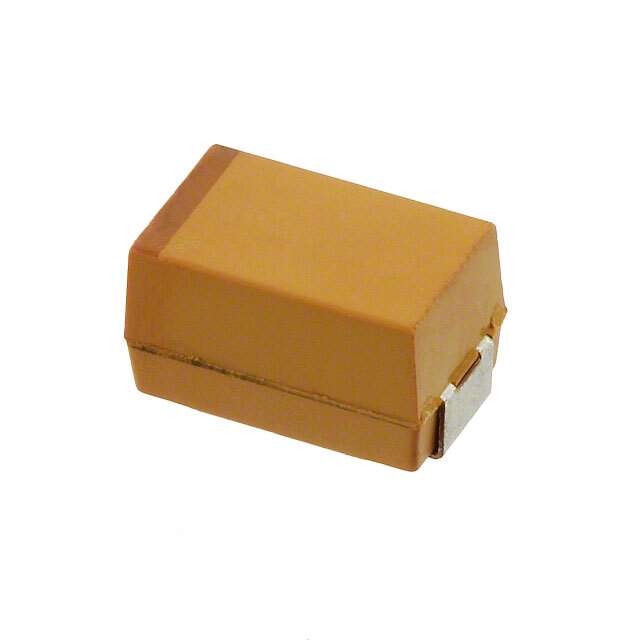

TCJA156M006R0300 Real Image
Same model may have multiple batches, images only for reference.

TCJA156M006R0300

Part No TCJA156M006R0300
Manufacturer AVX Corporation
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 15UF 6.3V 1206 / Cap Tant Polymer 15uF 6.3VDC A CASE 20% (3.2 X 1.6 X 1.6mm) SMD 3216-18 0.3 Ohm 125°C T/R
Datasheet
TCJA156M006R0300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Series TCJ
Packaging Reel package
Capacitance 15μF
Tolerance ±20%
Voltage Rating DC 6.3V
Type Molded
ESR (Equivalent Series Resistance) 300 mOhm
Operating Temperature Range -55°C ~ 125°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD
Package 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Maximum) 0.071" (1.80mm)
Manufacturer Size Code A
Features General
Win Source Part Number 796500-TCJA156M006R0300
Popularity Medium
Supply and Demand Status Limited
Family Name TCJ
Introduction Date May 25, 2005
ECCN EAR99
Country of Origin Czech Republic
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TCJA156M006R0300 CAD Model

Description

AVX Corporation's TCJ series capacitor is a molded type capacitor designed for general purpose applications.

  • Capacitance: 15μF
  • Voltage Rating: 6.3V DC
  • ESR: 300 mOhm
  • Tolerance: ±20%
  • Operating Temperature: -55°C to 125°C
  • Lifetime: 2000 Hrs @ 105°C
  • Mounting: SMD
  • Package: 1206 (3216 Metric)
  • Supply/Demand Status: Limited
