Same model may have multiple batches, images only for reference.

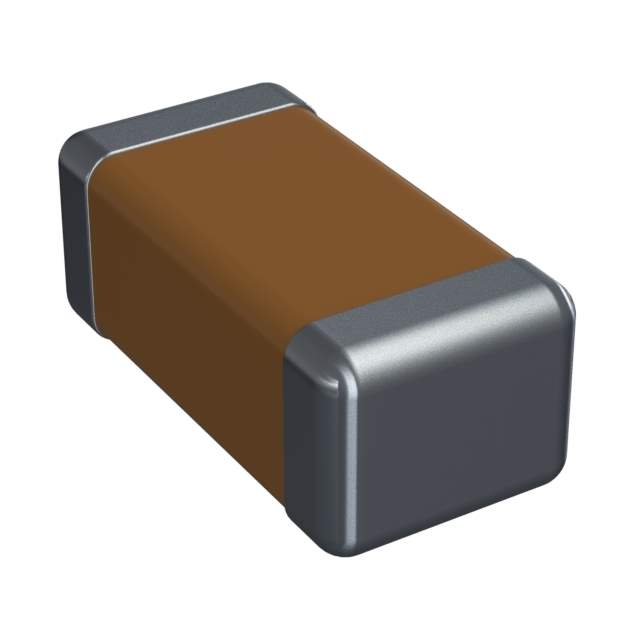

12063A103GAT2A Real Image
Same model may have multiple batches, images only for reference.

12063A103GAT2A

Part No 12063A103GAT2A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description CAP CER 10000PF 25V C0G/NP0 1206
Datasheet
12063A103GAT2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel package
Capacitance 10000pF
Tolerance ±2%
Voltage Rating DC 25V
Temperature Coefficient C0G, NP0
Operating Temperature Range -55°C ~ 125°C
Applications General
Mounting Surface Mount, MLCC
Package 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Maximum) 0.050" (1.27mm)
Win Source Part Number 766608-12063A103GAT2A
Popularity Medium
Supply and Demand Status Limited
Family Name C0G Dielectric
Introduction Date February 20, 1998
ECCN EAR99
Country of Origin China, Japan, United States of America
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 12063A103GAT2A CAD Model

Description

The AVX Corporation 12063A103GAT2A is a surface mount ceramic capacitor, manufactured by AVX Corporation.

  • Capacitance: 10000pF
  • Voltage Rating: 25V
  • Tolerance: ±2%
  • Temperature Coefficient: C0G, NP0
  • Package: 1206 (3216 Metric)
  • Applications: General
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Compliance: Halogen-Free
  • EOL Date: 2027
  • Packaging: Reel
  • Thickness: 0.050" (1.27mm)
